(07-045) - JOINT ASSY, SWIVEL (PM55V00012F1, PM55V00012F2)

Запчасти Case CX27B BTW (07-045) - JOINT ASSY, SWIVEL (PM55V00012F1, PM55V00012F2) (35) - HYDRAULIC SYSTEMS

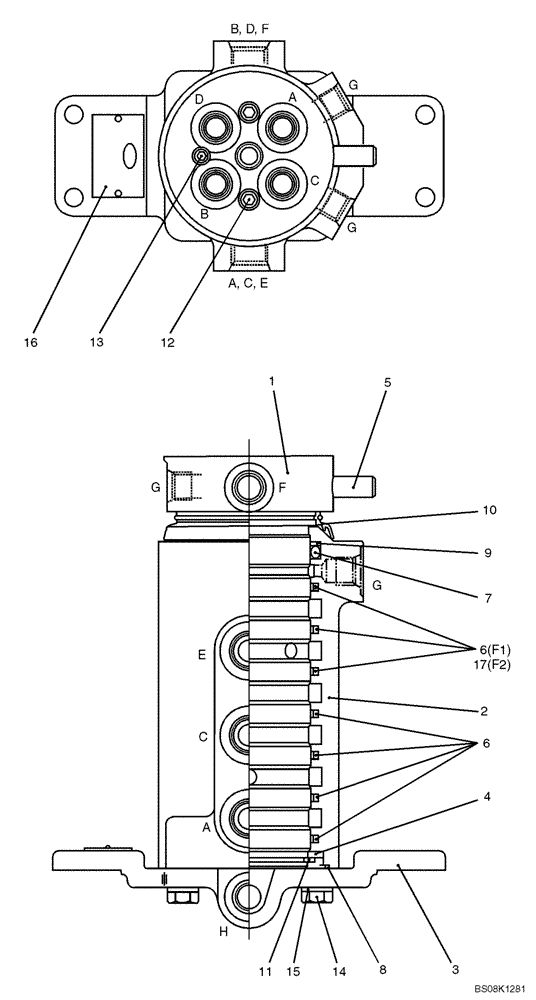

Схема запчастей Case CX27B BTW - (07-045) - JOINT ASSY, SWIVEL (PM55V00012F1, PM55V00012F2) (35) - HYDRAULIC SYSTEMS
14
1
4
11
12
3
6
15
7
2
13
9
16
17
5
6
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

JOINT ASSY, SWIVEL, PM55V00012F1, PM55V00012F2

1шт.

1

PV55V00001S001

SHAFT

1шт.

2

PV55V00001S002

ROTOR

Body

1шт.

3

PM55V00012S003

FLANGE

1шт.

4

PV55V00001S004

RING

Thrust

1шт.

5

PV55V00001S005

PIN

1шт.

6

PV55V00001S006

SEAL

(F1 Only)

7шт.

PV55V00001S006

SEAL

(F2 Only)

4шт.

7

ZD12P06000

O-RING

1шт.

8

PV55V00001S008

O-RING

1шт.

9

ZD75P06000

BACK-UP RING

1шт.

10

PV55V00001S010

SEAL

Dust

1шт.

11

ZR16X05500

RING

Retaining

1шт.

12

ZE82T02000

PLUG

2шт.

13

PV55V00001S013

PLUG

1шт.

14

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

4шт.

15

ZW22K08000

LOCK WASHER

4шт.

16

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

17

PM55V00012S017

SEAL

(F2 Only)

3шт.
