(01-030) - CONTROL BOX ASSY (LEFT HAND) (PW03M00093F1)

Запчасти Case CX27B BTW (01-030) - CONTROL BOX ASSY (LEFT HAND) (PW03M00093F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS

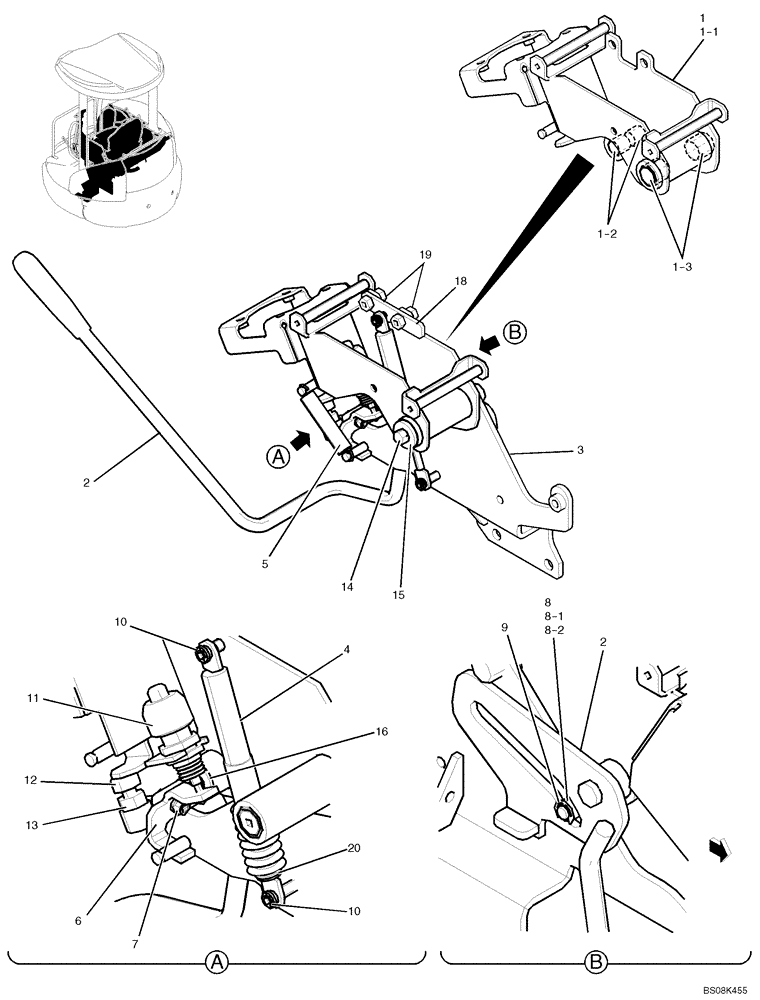

Схема запчастей Case CX27B BTW - (01-030) - CONTROL BOX ASSY (LEFT HAND) (PW03M00093F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
9
16
10
1-3
1-1
4
8
14
1-2
3
2
20
18
19
8-1
6
12
7
2
8-2
5
11
15
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

CONTROL BOX ASSY, PW03M00093F1

1шт.

1

PW03M01500F1

CONTROL

Box Assy

1шт.

1-1

PW03M01501P3

CONTROL

Box

1шт.

1-2

2405R312D1515

BUSHING,15mm ID x 17mm OD x 15mm L

2шт.

1-3

2405R312D2020

BUSHING

2шт.

2

PW03M01499P3

LOCK

1шт.

3

PW03M01858P1

SUPPORT

1шт.

4

PH03M01513F1

GAS STRUT

Assy

1шт.

5

PW03M01428P1

SPRING

1шт.

6

PW03M01415P1

SUPPORT

1шт.

7

ZM61C06020

BOLT

Sems

2шт.

8

PW03M01392F1

ROLLER ASSY.,15mm OD x 15mm L

1шт.

8-1

PW03M01391P1

ROLLER

1шт.

8-2

2405R312D1015

BUSHING

1шт.

9

ZR36X00900

SNAP RING

Retaining

1шт.

10

ZR36X00500

SNAP RING

Retaining

2шт.

11

PA50S00001P1

LIMIT SWITCH

1шт.

12

PY06C01040P1

STOP

1шт.

13

ZN18F10008

NUT

1шт.

14

ZM12C08016

BOLT

Sems

1шт.

15

PM02C01425P1

WASHER

1шт.

16

ZW16P14000

WASHER

1шт.

18

PW03M01815P1

LEVER

1шт.

19

ZM22C08025

BOLT

Sems

2шт.

20

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

1шт.
