(01-043) - PLATE GROUP FLOOR (CAB) (PM03M00062F1)

Запчасти Case CX27B BTW (01-043) - PLATE GROUP FLOOR (CAB) (PM03M00062F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS

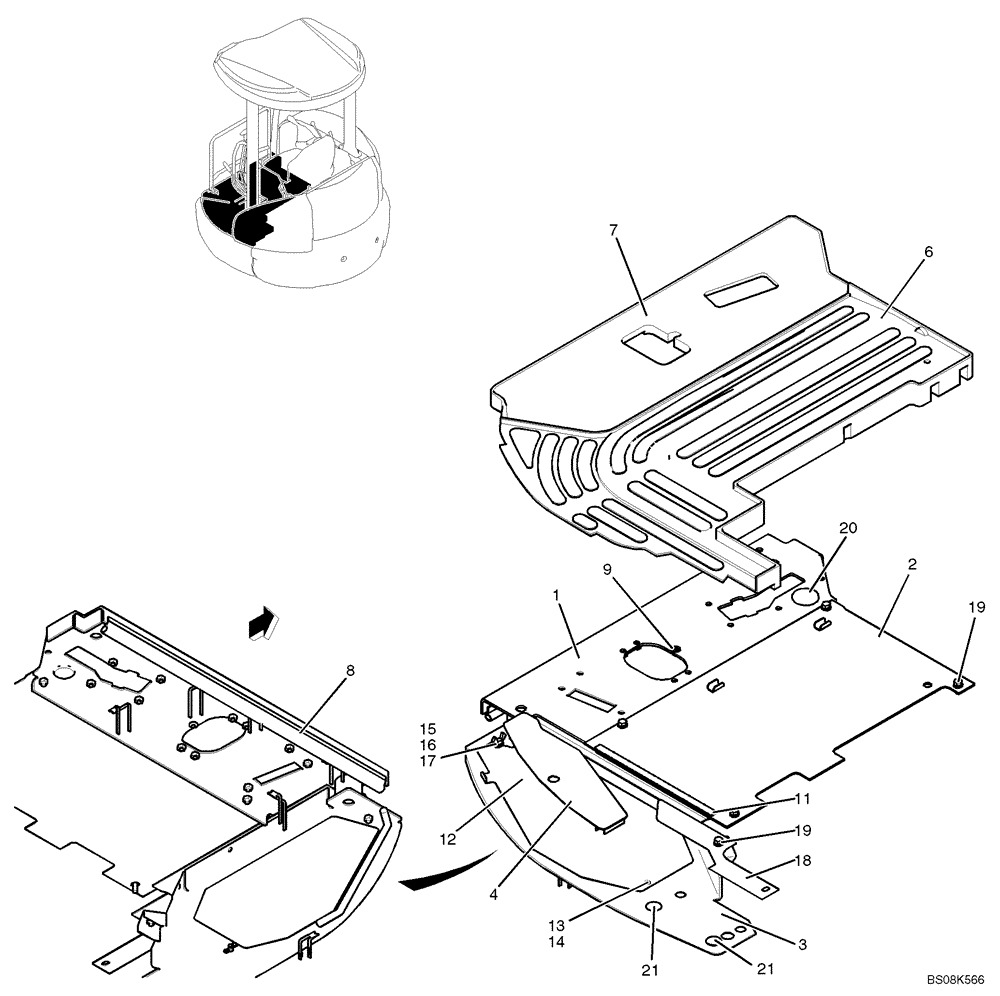

Схема запчастей Case CX27B BTW - (01-043) - PLATE GROUP FLOOR (CAB) (PM03M00062F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
18
20
7
21
3
12
14
8
16
13
19
6
19
2
21
4
15
17
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PLATE GROUP, FLOOR, PM03M00062F1

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PW03M01592P1

COVER

PLATE

1шт.

3

PH03M01860P1

BRACKET

1шт.

4

PH03M01458P2

COVER

COVER

1шт.

6

PM26M00018P1

FLOOR MAT

1шт.

7

PV26M00014P1

MAT, FLOOR

1шт.

8

PH21C01136DF

WEATHERSTRIP

1шт.

9

YN03M01159P1

GROMMET

1шт.

11

PW03M01545P1

RUBBER

1шт.

12

PW03M01830P1

COVER

COVER

1шт.

13

PW11M01071P1

PIN,8mm OD x 19mm L

1шт.

14

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

15

2420R585D23

BOLT,Wing, M8 x 20mm

Wing

1шт.

16

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

17

ZW26X08000

LOCK WASHER

Lock

1шт.

18

PW03M01831P1

COVER

PLATE

1шт.

19

PM21C01202P1

BOLT

Sems

5шт.

20

PM03M01357P1

PLUG

1шт.

21

YT02C01567D2

PLATE

2шт.
