(01-016) - CONTROL ASSY, ENGINE (WITH DECEL) 1 OF 2 (PM11M00008F1)

Запчасти Case CX27B BTW (01-016) - CONTROL ASSY, ENGINE (WITH DECEL) 1 OF 2 (PM11M00008F1) (10) - ENGINE

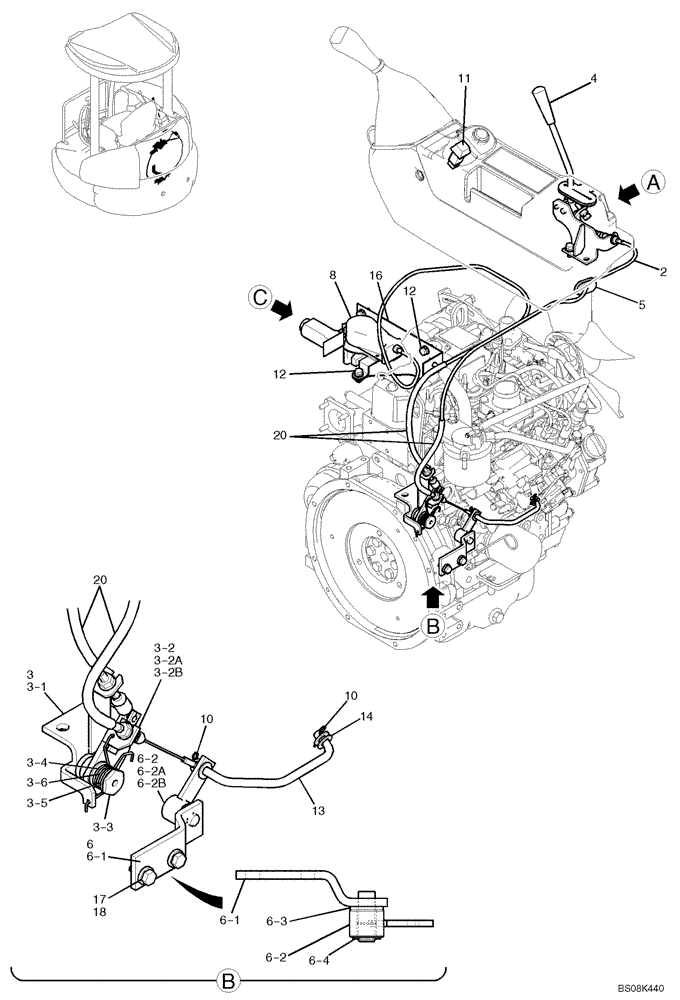

Схема запчастей Case CX27B BTW - (01-016) - CONTROL ASSY, ENGINE (WITH DECEL) 1 OF 2 (PM11M00008F1) (10) - ENGINE
3-4
12
6
3-2
3-3
3-2b
6-3
10
6
3
20
3-1
6-2a
6-4
3-5
16
12
10
4
6-1
8
14
6-2b
18
20
13
6-1
2
3-6
11
3-2a
17
6-2
6-2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

CONTROL ASSY, ENGINE, PM11M00008F1

1шт.

2

PW11M01080P1

CABLE,1268mm L

Control

1шт.

3

PM11M01122F1

LINK

LINK, Assy

1шт.

3-1

PM11M01118P1

BRACKET

BRACKET

1шт.

3-2

PM11M01123F1

LINK

LINK, Assy

1шт.

3-2a

PM11M01124P1

LINK

LINK

1шт.

3-2b

2405R312D1512

BUSHING,15mm ID x 17mm OD x 12mm L

1шт.

3-3

PW11M01112P2

NUT

1шт.

3-4

PW11M01143P1

WASHER

1шт.

3-5

PW11M01144P1

WASHER

1шт.

3-6

PW11M01114P1

SPRING

1шт.

4

2406Z321

HANDLE

1шт.

5

PM11M01049P1

GROMMET

1шт.

6

PM11M01073F1

BRACKET

Assy

1шт.

6-1

PM11M01070P1

BRACKET

1шт.

6-2

PM11M01072F1

LINK ASSY.

Assy

1шт.

6-2a

PM11M01071P1

LINK

1шт.

6-2b

2405R312D1210

BUSHING

2шт.

6-3

ZW16X12000

WASHER

1шт.

6-4

ZR36X01000

RING

Retaining

1шт.

8

PM20S00010F1

GOVERNOR

Motor Assy

1шт.

10

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

2шт.

11

PM50S00005P1

SWITCH

Decel

1шт.

12

ZM22C08020

BOLT

Sems

6шт.

13

PM11M01125P1

LEVER

LEVER

1шт.

14

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

16

PM11M01047P1

BRACKET

1шт.

17

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

18

ZW16H08000

WASHER

2шт.

20

PE13E01034D4

TUBE

2шт.
