(08-003) - FLYWHEEL HOUSING & LUB. OIL SUMP

Запчасти Case CX27B BTW (08-003) - FLYWHEEL HOUSING & LUB. OIL SUMP (10) - ENGINE

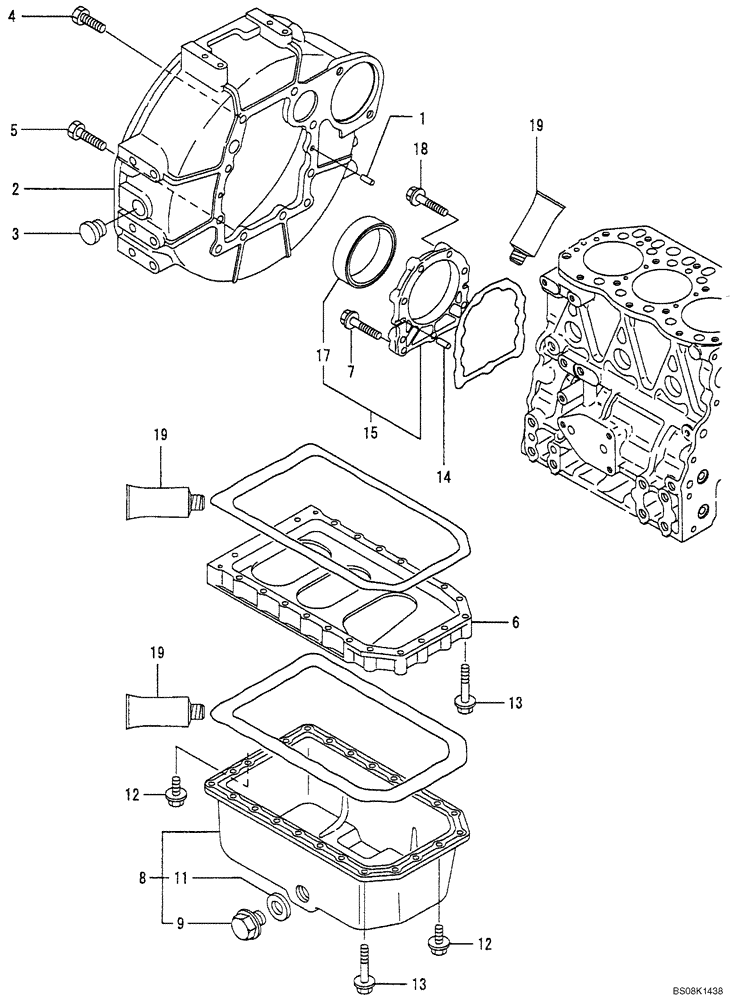

Схема запчастей Case CX27B BTW - (08-003) - FLYWHEEL HOUSING & LUB. OIL SUMP (10) - ENGINE
12
4
14
7
6
18
11
5
19
13
9
17
8
15
3
13
1
19
19
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

FLYWHEEL HOUSING & OIL SUMP

1шт.

1

VV12910001580

PIN,M8 x 16mm

Parallel 8 x 16

2шт.

2

VV12961201600

HOUSING

Flywhell

1шт.

3

VV11962001750

CAP

Flywheel Cover

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M10 x 25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

M10 x 30

4шт.

6

VV11981001730

SPACER

L. 0. Sump

1шт.

7

VV26106080352

BOLT,M8 x 35mm

M8 x 35 Plated

3шт.

8

VV11981001770

SUMP

Assy, Oil

1шт.

9

VV11964001640

DRAIN PLUG,M22

M22

1шт.

11

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

Washer 22S

1шт.

12

VV26106080162

BOLT,M8 x 16mm

M8 x 16 Plated

6шт.

13

VV26106080452

BOLT,M8 x 45mm

M8 x 45 Plated

22шт.

14

VV12910001580

PIN,M8 x 16mm

Parallel 8 x16

2шт.

15

VV12910001640

BOX

Assy, Oil Seal

1шт.

17

VV12979501780

OIL SEAL

1шт.

18

VV12948601670

BOLT,M8 x 30mm

M8 x 30, Collar HD

6шт.

19

VV97777001212

GASKET

Liquid (1) Optional Part.

1шт.
