(08-009) - LUBRICATION, OIL SYSTEM

Запчасти Case CX27B BTW (08-009) - LUBRICATION, OIL SYSTEM (10) - ENGINE

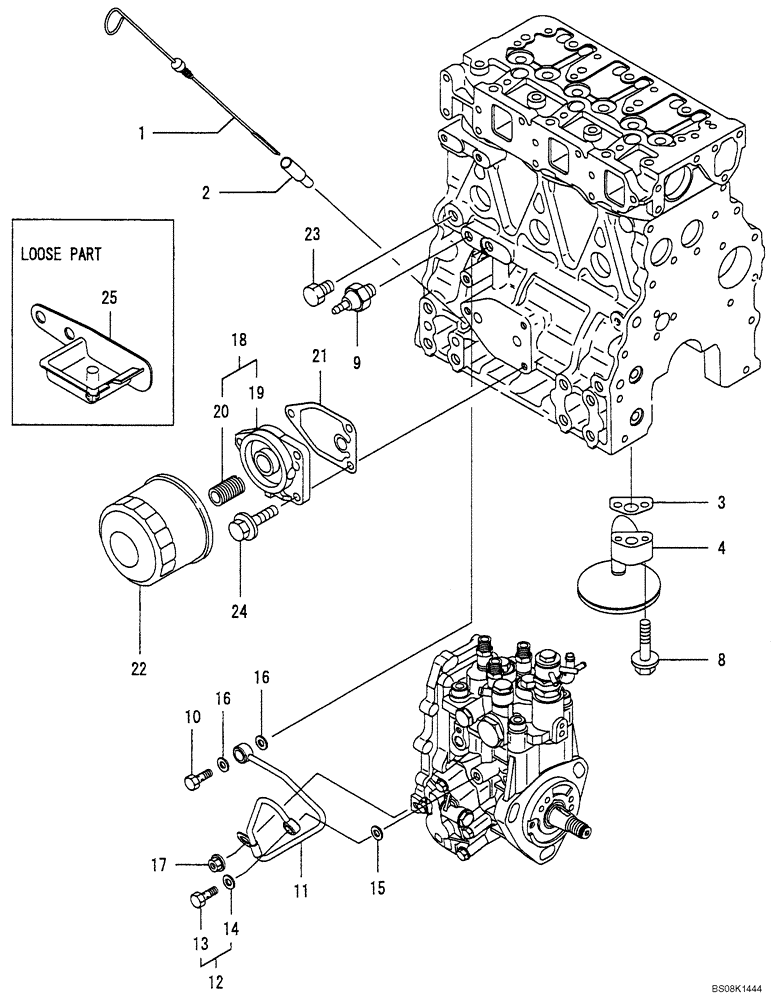

Схема запчастей Case CX27B BTW - (08-009) - LUBRICATION, OIL SYSTEM (10) - ENGINE
3
20
9
4
8
25
10
16
16
11
12
15
19
17
18
23
14
2
24
22
13
21
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

LUBRICATION OIL SYSTEM

1шт.

1

VV11980234801

DIPSTICK

Lub. Oil

1шт.

2

VV12152034810

GUIDE

Dipstick

1шт.

3

VV12915035041

GASKET

(Non-ASB.)

1шт.

4

VV11981035300

PIPE ASSY.

Oil Inlet

1шт.

8

VV26106080352

BOLT,M8 x 35mm

M8 x 35 Plated

2шт.

9

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

(0. 5KG) L. 0.

1шт.

10

VV12416039140

BOLT

10, Pipe Joint

1шт.

11

VV11980239450

PIPE ASSY.

Lub. Oil

1шт.

12

VV12900559830

BOLT

Assy, Joint

1шт.

13

VV23857030000

BOLT

Joint, 3

1шт.

14

VV22190080002

SEAL

Washer 8S

1шт.

15

VV22190080002

SEAL

Washer 8S

1шт.

16

VV22190100002

SEAL

Washer 10S

2шт.

17

VV26366060002

NUT,M6

M6

1шт.

18

VV11980235100

BRACKET

Assy, Filter

1шт.

19

VV11980235110

BRACKET

1шт.

20

VV12910035140

STUD

1шт.

21

VV12915035111

GASKET

(Non-ASB.)

1шт.

22

VV12915035152

ENGINE OIL FILTER

80 x 80L

1шт.

23

VV17105649120

PLUG

Drain

1шт.

24

VV26106080202

BOLT,M8 x 20mm

M8 x 20 Plated

3шт.

25

VV11994035800

PAN

(LO)

1шт.
