(07-010) - VALVE ASSY, CONTORL (BOOM) (PM30V00047F1, PM30V00047F2)

Запчасти Case CX27B BTW (07-010) - VALVE ASSY, CONTORL (BOOM) (PM30V00047F1, PM30V00047F2) (35) - HYDRAULIC SYSTEMS

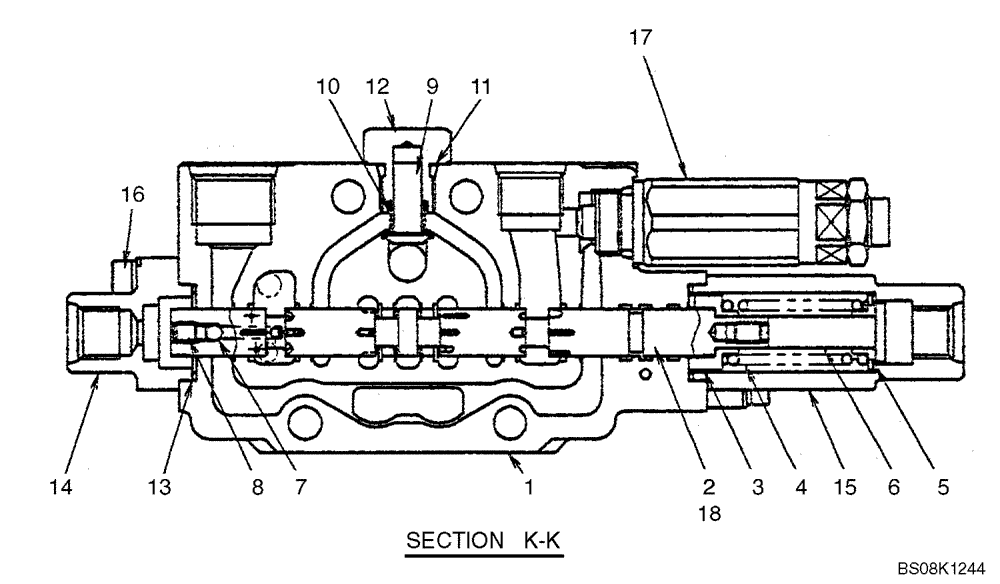

Схема запчастей Case CX27B BTW - (07-010) - VALVE ASSY, CONTORL (BOOM) (PM30V00047F1, PM30V00047F2) (35) - HYDRAULIC SYSTEMS
7
2
14
13
6
15
4
17
18
5
1
16
12
9
3
8
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

VALVE ASSY, CONTROL, PM30V00047F1, PM30V00047F2

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool (F1 Only)

1шт.

3

NSS

NOT SOLD SEPARAT

Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

NSS

NOT SOLD SEPARAT

Ball

1шт.

8

NSS

NOT SOLD SEPARAT

Plug

1шт.

9

PH30V00003S006

POPPET

1шт.

10

PH30V00003S007

SPRING

1шт.

11

ZD12P01100

O-RING

1шт.

12

PH30V00003S009

PLUG

1шт.

13

PW30V01008S011

O-RING

2шт.

14

PM30V00021S012

COVER

1шт.

15

PM30V00021S013

COVER

1шт.

16

PM30V00021S014

SCREW

Cap Screw

4шт.

17

PM22V00005F4

VALVE PRESSURE RELIE

Assy; See Figure 07-011 And 07-015

1шт.

18

NSS

NOT SOLD SEPARAT

Spool (F2 Only)

1шт.

PM30V00047R100

REPAIR KIT

Includes Items 2, 3, 4, 5, 6, 7, 8 (F1 Only)

1шт.

PM30V00047R200

REPAIR KIT

KIT, REPAIR, Includes Items 3, 4, 5, 6, 7, 8, And 18 (F2 Only)

1шт.
