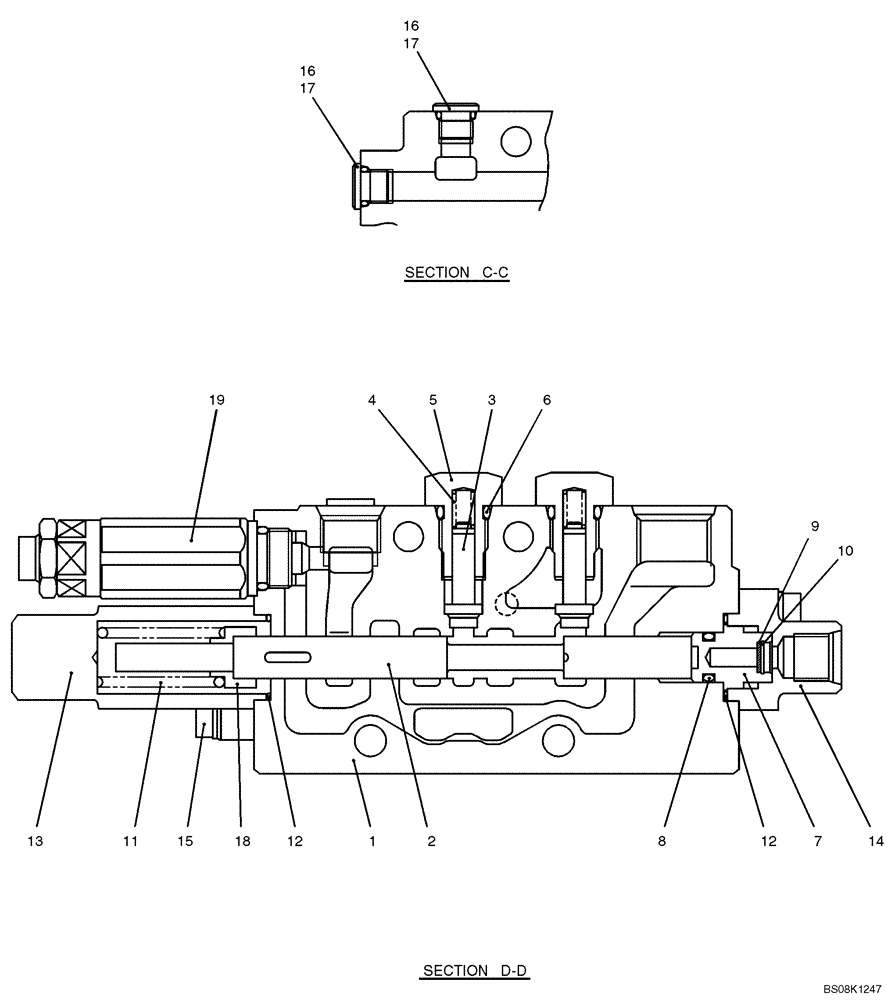

Запчасти Case CX27B BTW (07-013) - VALVE ASSY, CONTROL (SUPPLY, TRAVEL INDEPENDENCE) (PM30V00053F1) (35) - HYDRAULIC SYSTEMS

(SUPPLY, TRAVEL INDEPENDENCE) VALVE ASSY , CONTROL, PM30V00053F1

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

PW30V01009S002

POPPET

2шт.

4

PH30V00014S013

SPRING

2шт.

5

PW30V01009S005

PLUG

2шт.

6

ZD12P01100

O-RING

2шт.

7

PW30V01013S009

CASE

Filter

1шт.

8

ZD12P01090

O-RING

1шт.

9

2436U1115S24

FILTER

1шт.

10

2483U282S2

RING

Retaining

1шт.

11

PW30V01013S013

SPRING

1шт.

12

PW30V01008S011

O-RING

2шт.

13

PM30V00027S015

COVER

1шт.

14

PM30V00021S012

COVER

1шт.

15

PM30V00021S014

SCREW

Cap Screw

4шт.

16

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

17

2436U1460S20

PLUG

2шт.

18

PX30V00050S001

SEAT

Spring

1шт.

19

PR22V00004F7

VALVE PRESSURE RELIE

Assy; See Figure 07-016

1шт.
