(05-002) - CONTROL LINES, PROPEL (NIBBLER & BREAKER + TRAVEL ALARM)

Запчасти Case CX27B PV13 (05-002) - CONTROL LINES, PROPEL (NIBBLER & BREAKER + TRAVEL ALARM) OPTIONAL PARTS

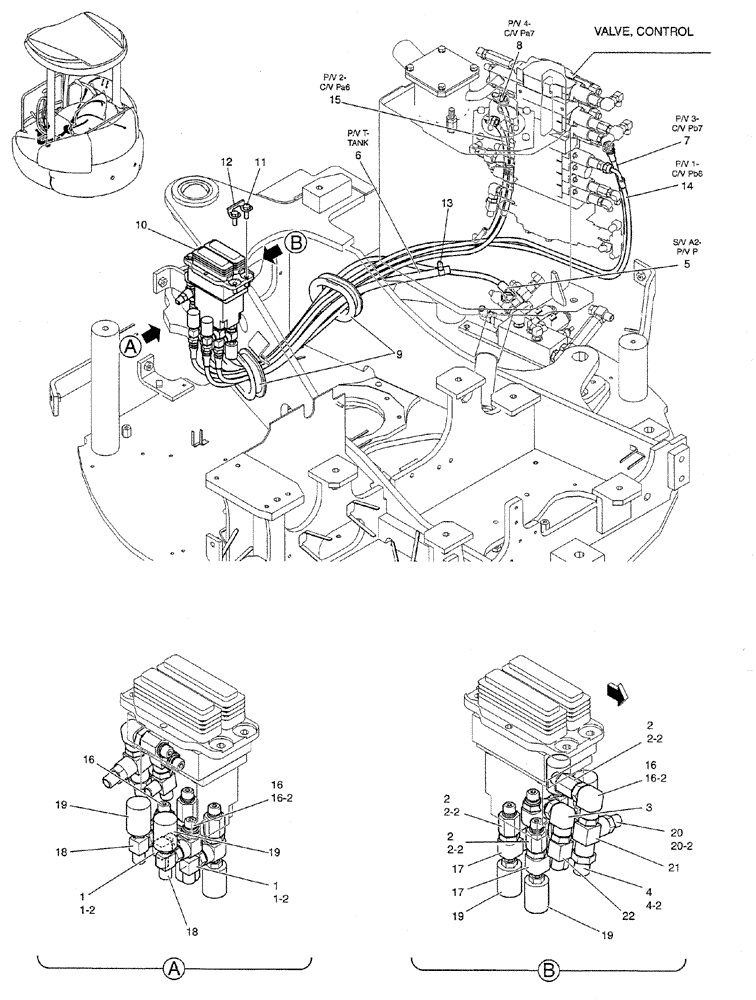

Схема запчастей Case CX27B PV13 - (05-002) - CONTROL LINES, PROPEL (NIBBLER & BREAKER + TRAVEL ALARM) OPTIONAL PARTS
2
16
7
4-2
18
22
16-2
19
20
1-2
16-2
17
21
2-2
18
10
17
16
2-2
8
6
1
1-2
15
2-2
12
16
11
13
189
1
4
2
19
20-2
5
2
3
9
19
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

CONTROL LINES, PROPEL (PM62H00015F1)

1шт.

1

HH35S04004G1

90 ELBOW

2шт.

1-2

ZD12P01100

O-RING

1шт.

2

2444Z2525

HYD CONNECTOR

3шт.

2-2

ZD12P01100

O-RING

1шт.

3

PH62H01003P1

ELBOW

(WITH FILTER)

1шт.

4

HH25S06004G3

HYD CONNECTOR

1шт.

4-2

ZD12P01400

O-RING

1шт.

5

HX34L04105DX

HYDRAULIC HOSE

HOSE

1шт.

6

PW68H01023DB

HOSE,9.5mm ID x 760mm L

1шт.

7

HX23L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

8

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

9

PW62H01001P1

GROMMET

2шт.

10

PM30V00019F6

PILOT VALVE

ASSY, PILOT

1шт.

SEE (C.P.M)

1шт.

11

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

12

PW62H01003P1

PLATE

2шт.

13

ZC16X01800

CLIP

1шт.

14

HX33L03140DX

HOSE

1шт.

15

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

1шт.

16

2444Z2894

90 ELBOW

ELBOW

3шт.

16-2

ZD12P01100

O-RING

1шт.

17

2444Z4231

ELBOW

2шт.

18

PV62H01001P1

ELBOW

2шт.

19

GB50S00049F2

SWITCH

PRESS (L.P.)

4шт.

20

HH25S04004G1

HYD CONNECTOR

1шт.

20-2

ZD12P01100

O-RING

1шт.

21

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

22

HH55L04004G1

TEE

1шт.
