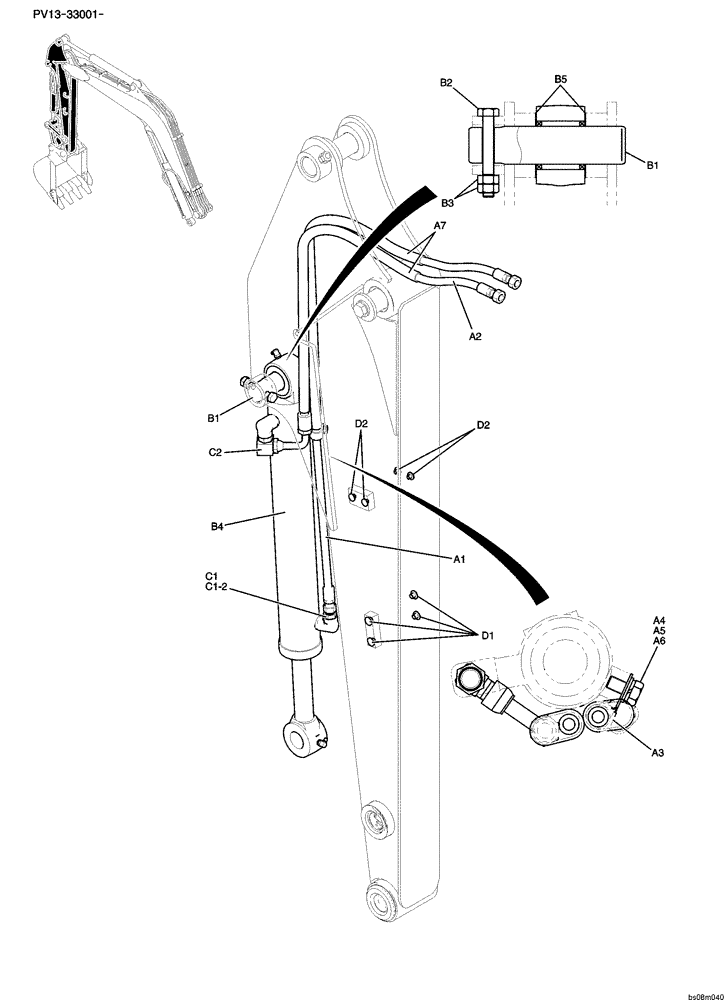

Запчасти Case CX27B PV13 (05-009) - HYD LINES, ARM 1.37M OPTIONAL PARTS

HYD LINES, ARM (PV43H00015F1)

1шт.

a1

PM42H01144D5

HOSE,9.5mm ID x 1410mm L

HOSE

1шт.

a2

PX42H01169D8

HOSE,9.5mm ID x 1040mm L

1шт.

a3

ZC46X16011

CLIP

1шт.

a4

ZW16X10000

WASHER

1шт.

a5

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

a6

ZW26X10000

LOCK WASHER

1шт.

a7

2414Z199D080

PROTECTIVE SLEEVE

HOSE, GUARD

2шт.

CYLINDER INSTAL (PV12B00113F1)

1шт.

b1

PM12B01348P1

PIN,35mm OD x 145mm L

1шт.

b2

HS18C10075G2

SCREW

CAP

1шт.

b3

ZN18C10008

NUT

2шт.

b4

PV01V00063F1

CYLINDER,Double Acting, 35mm Rod, 417mm Stroke

ASSY, BUCKET

1шт.

SEE (C.P.M)

1шт.

b5

PR02B01109P1

SHIM,0.5mm Thk

2шт.

HYD LINES, CYLINDER (PM43H00021F1)

1шт.

c1

HH25S06006G1

HYD CONNECTOR

1шт.

c1-2

ZD12P01400

O-RING

1шт.

c2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

CAP ASSY (PX43H01011F1)

1шт.

d1

PV02B01073D4

CAP

4шт.

d2

PV02B01073D2

CAP

4шт.
