(01-017) - CONTROL ASSEMBY ENGINE (WITH DECAL) , P/N PH51M00011F1

Запчасти Case CX27B PV13 (01-017) - CONTROL ASSEMBY ENGINE (WITH DECAL) , P/N PH51M00011F1 (05) - SUPERSTRUCTURE

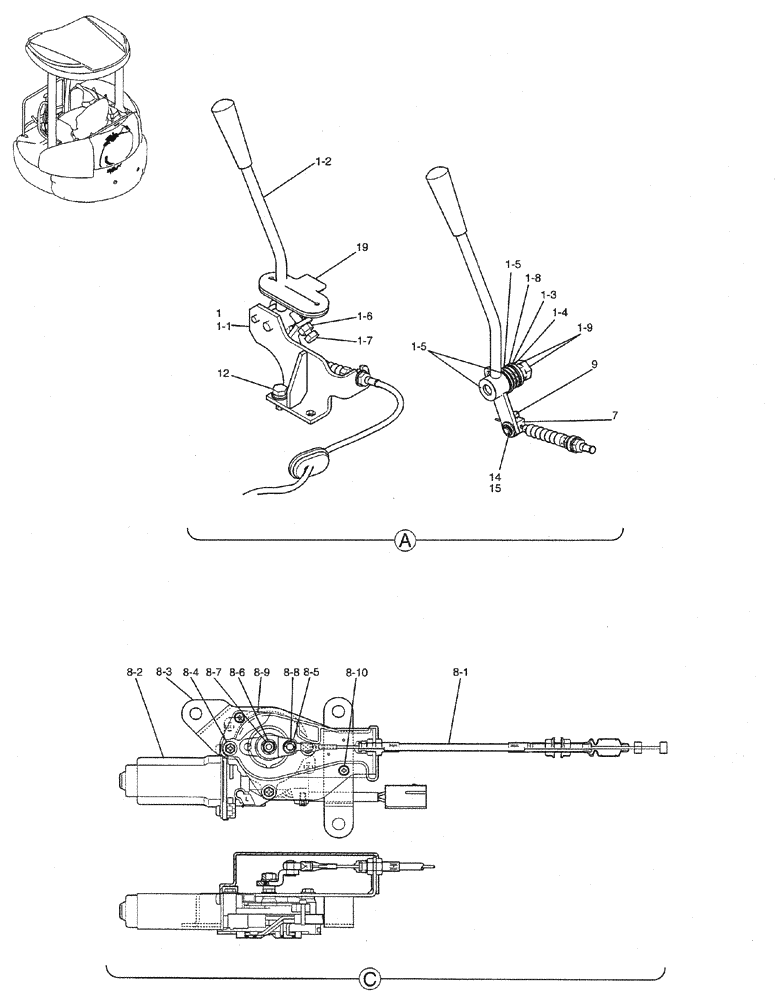

Схема запчастей Case CX27B PV13 - (01-017) - CONTROL ASSEMBY ENGINE (WITH DECAL) , P/N PH51M00011F1 (05) - SUPERSTRUCTURE
12
8-2
8-10
14
1-7
1-8
15
1-6
1-5
8-4
9
8-7
8-1
1-3
1-4
7
1-5
8-9
1-1
8-6
8-8
8-3
1-9
19
8-5
1-2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PH51M00011F1

LEVER ASSY.

THROTTLE

1шт.

1-1

PH51M01030P1

BRACKET

1шт.

1-2

PH51M01032P1

LEVER

LEVER

1шт.

1-3

R16T0137D2

WASHER

6шт.

1-4

ZW16H12000

WASHER

1шт.

1-5

PM51M01026P1

BUSHING,12mm ID x 14mm OD x 7mm L

2шт.

1-6

ZN18C08007

NUT

1шт.

1-7

2420T8007D3

CAPSCREW

CAP

1шт.

1-8

PM51M01025P1

PLATE

1шт.

1-9

ZN17C12007

NUT

2шт.

7

PW11M01109P2

PIN

1шт.

8-1

PM20S00010S001

CABLE

1шт.

8-2

PM20S00009S002

GOVERNOR

MOTOR

1шт.

8-3

PW20S00012S003

BRACKET

1шт.

8-4

PM20S00009S004

SCREW

3шт.

8-5

PM20S00009S005

LEVER ASSY.

1шт.

8-6

PM20S00009S006

LOCK WASHER

1шт.

8-7

PM20S00009S007

NUT

1шт.

8-8

PM20S00009S008

RING

RETAINING

1шт.

8-9

PM20S00009S009

COVER

1шт.

8-10

PM20S00009S010

SCREW

2шт.

9

ZS18C05010

SCREW,Hex, M5 x 10mm

CAP

1шт.

12

ZM22C08020

BOLT

SEMS

2шт.

14

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

15

ZR36X00600

SNAP RING

1шт.

19

PW11M01108P1

GROMMET

1шт.
