(07-007) - VALVE ASSY, CONTROL [TRAVEL (RIGHT)]

Запчасти Case CX27B PV13 (07-007) - VALVE ASSY, CONTROL [TRAVEL (RIGHT)] ELECTRICAL AND HYDRAULIC COMPONENTS

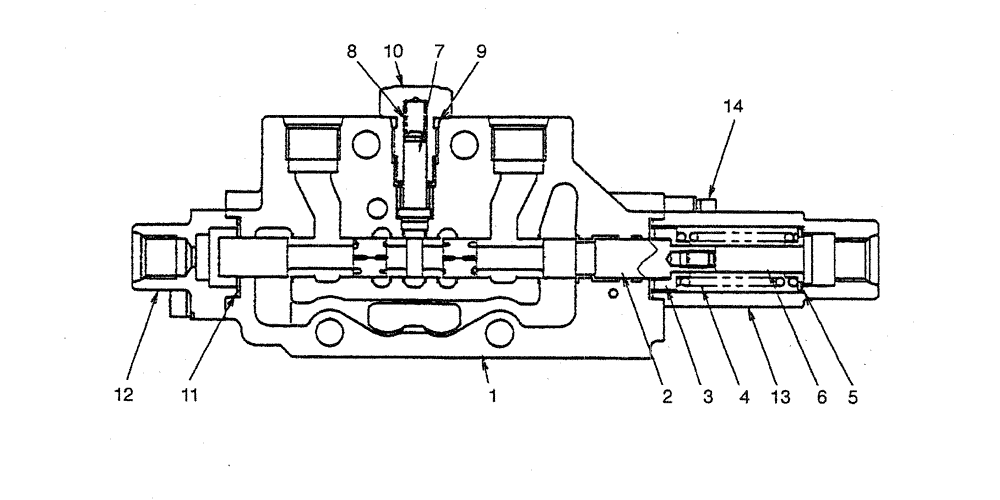

Схема запчастей Case CX27B PV13 - (07-007) - VALVE ASSY, CONTROL [TRAVEL (RIGHT)] ELECTRICAL AND HYDRAULIC COMPONENTS
8
9
1
5
13
6
3
10
4
2
7
11
14
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PM30V00044F1

VALVE

ASSY, CONTROL

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

7

PW30V01009S002

POPPET

CHECK VALVE

1шт.

8

PH30V00014S013

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PW30V01009S005

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

CAPSCREW

4шт.

PM30V00044R100

REPAIR KIT

CONSISTS OF ITEM 2(1), 3(1), 4(1), 5(1), 6(1)

1шт.
