(07-021) - MOTOR ASSY (PROPELLING), (PM15V00021F1), PAGE 1 OF 2

Запчасти Case CX27B PV13 (07-021) - MOTOR ASSY (PROPELLING), (PM15V00021F1), PAGE 1 OF 2 ELECTRICAL AND HYDRAULIC COMPONENTS

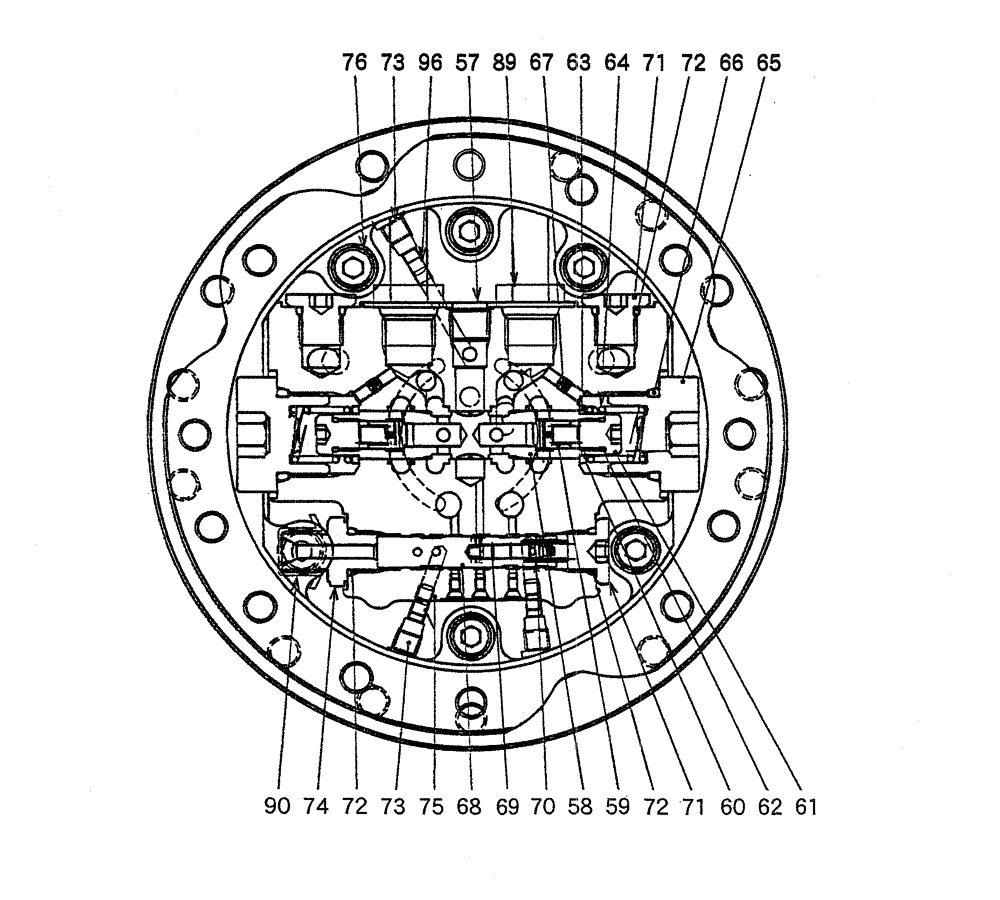

Схема запчастей Case CX27B PV13 - (07-021) - MOTOR ASSY (PROPELLING), (PM15V00021F1), PAGE 1 OF 2 ELECTRICAL AND HYDRAULIC COMPONENTS
73
63
58
65
66
75
64
57
59
72
68
62
90
72
69
89
61
70
96
60
67
71
76
71
74
73
72
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PM15V00021F1

HYDRAULIC MOTOR,671CC

ASSY (PROPELLING), Page 1 of 2

1шт.

PM15V00021F1R

REMAN-HYD MOTOR

CX27B COMPACT CRAWLER EXCAVATOR TIER 4 (NA) - ASN PV13-33001- (N7TN41469-) (1/08-)

1шт.

PM15V00021F1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

57

NSS

NOT SOLD SEPARAT

PLATE

1шт.

58

PM15V00021S058

SPOOL

1шт.

59

PM15V00004S002

GASKET

2шт.

60

PM15V00004S003

SPRING

2шт.

61

PU15V00003S314

PLUG

2шт.

62

PM15V00004S005

O-RING

2шт.

63

PM15V00004S025

SEAT

PLATE, THRUST

2шт.

64

PM15V00004S026

COVER

2шт.

65

PM15V00021S065

CAP

2шт.

66

ZD12P02400

O-RING

2шт.

67

PM15V00004S029

ORIFICE

2шт.

68

NSS

NOT SOLD SEPARAT

SPOOL A

1шт.

69

NSS

NOT SOLD SEPARAT

SPOOL C

1шт.

70

PM15V00021S070

SPRING

1шт.

71

PU15V01003S027

PLUG

3шт.

72

ZD12P01100

O-RING

4шт.

73

2441U802S47

PLUG

3шт.

74

PM15V00021S074

ADAPTER

Union fitting

1шт.

75

PV15V00002S040

ORIFICE

4шт.

76

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

CAP

6шт.

89

NSS

NOT SOLD SEPARAT

PLUG

2шт.

90

NSS

NOT SOLD SEPARAT

PLUG

1шт.

96

PV15V00002S040

ORIFICE

1шт.
