(03-019[00]) - ARM, LONG 1.47M, NIBBLER & BREAKER

Запчасти Case CX31B (03-019[00]) - ARM, LONG 1.47M, NIBBLER & BREAKER (84) - BOOMS, DIPPERS & BUCKETS

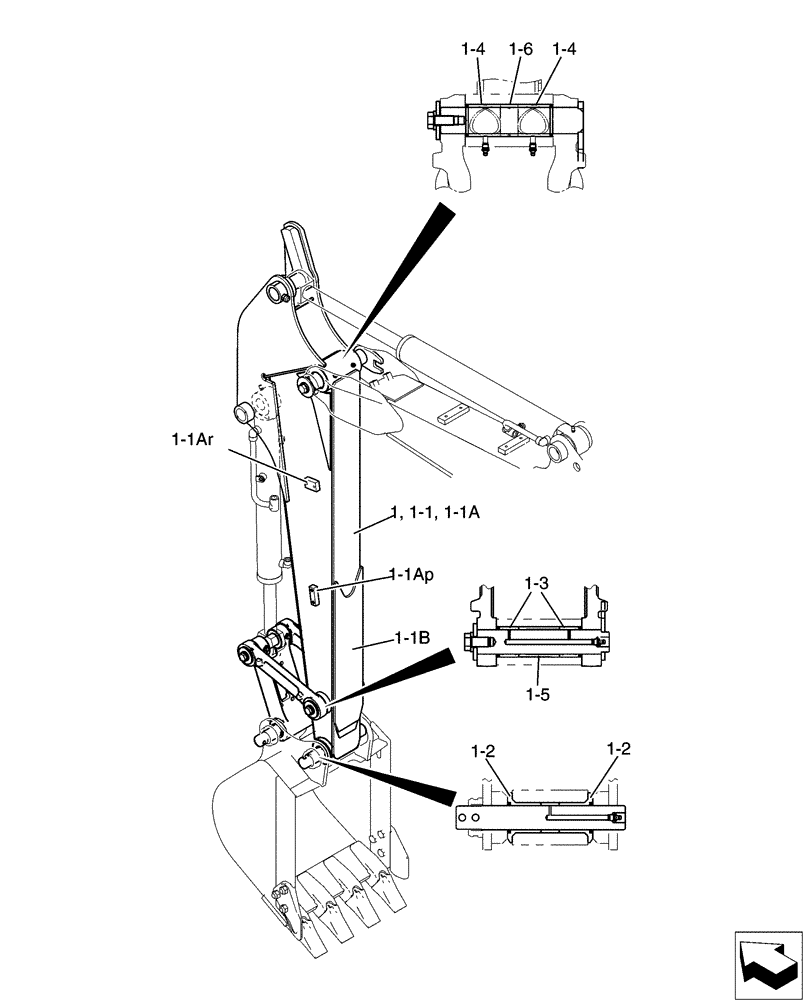

Схема запчастей Case CX31B - (03-019[00]) - ARM, LONG 1.47M, NIBBLER & BREAKER (84) - BOOMS, DIPPERS & BUCKETS
1-4
1-6
1
1-1
1-4
1-1ap
1-1ar
1-2
1-5
1-3
1-1a
1-1b
1-2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW12B00159F1

ARM

Long 1.47M (Nibbler & Breaker)

1шт.

1

PW12B00176F1

ARM

Long

1шт.

1-1

PW12B00161P1

Long

1шт.

1-1a

PW12B00115P2

Long

1шт.

1-1ap

PV12B01227P1

BLOCK

Tapped

2шт.

1-1ar

PX12B01185P1

BLOCK

Tapped

2шт.

1-1b

PW12B01277P1

PLATE

1шт.

1-2

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

1-3

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

1-4

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

1-5

PW12B01208D1

COLLAR

1шт.

1-6

PX12B01016P1

COLLAR

1шт.
