(08-009[00]) - LUB. OIL SYSTEM

Запчасти Case CX31B (08-009[00]) - LUB. OIL SYSTEM (10) - ENGINE

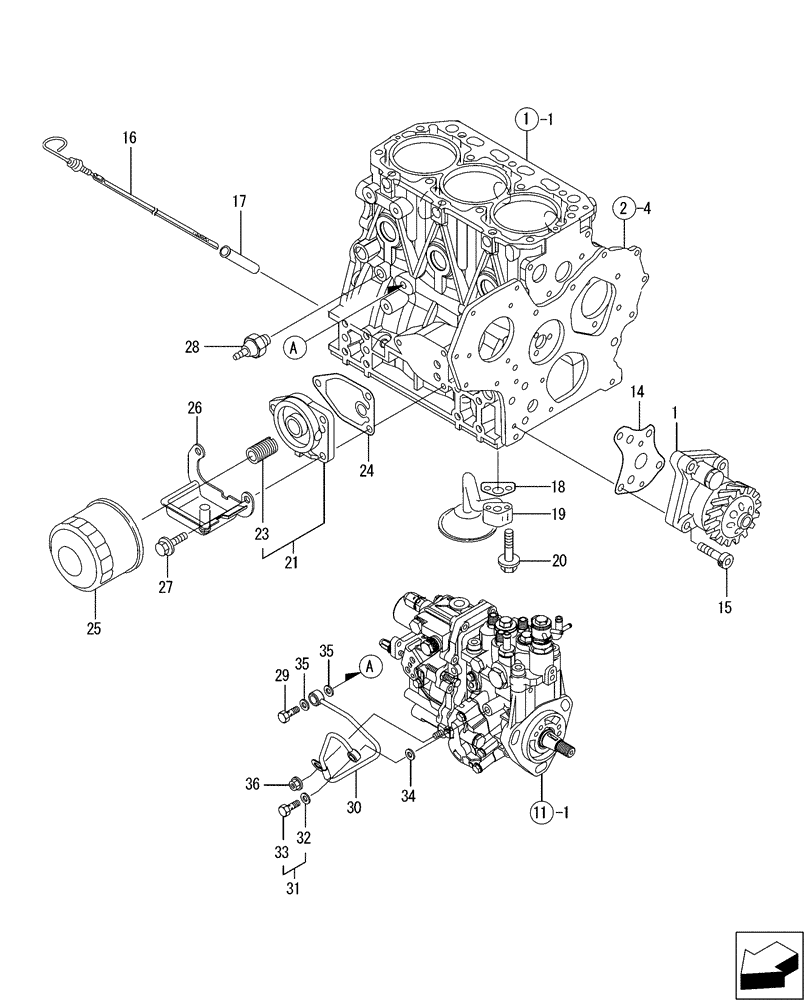

Схема запчастей Case CX31B - (08-009[00]) - LUB. OIL SYSTEM (10) - ENGINE
31
24
32
23
29
36
33
18
14
21
27
15
34
1
35
16
26
28
20
17
25
19
30
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV12900132001

LUBE PUMP

Assy., Oil

1шт.

14

VV12915032020

GASKET

L.O. Pump

1шт.

15

VV26450060252

BOLT,M6 x 25mm

M6 x 25

4шт.

16

VV12900434802

DIPSTICK

Lub. Oil

1шт.

17

VV12152034810

GUIDE

Dipstick

1шт.

18

VV12915035042

GASKET

(Non-Asb.)

1шт.

19

VV12910035301

PIPE ASSY.

Oil Inlet

1шт.

20

VV26106080352

BOLT,M8 x 35mm

M8 x 35 Plated

2шт.

21

VV11980235100

BRACKET

Assy., Filter, Includes Ref. 23

1шт.

23

VV12910035140

STUD

1шт.

24

VV12915035111

GASKET

(Non-Asb.)

1шт.

25

VV12915035153

ENGINE OIL FILTER

Cyl. Head

1шт.

26

VV12924035800

PLATE

L.O.

1шт.

27

VV26106080202

BOLT,M8 x 20mm

M8 x 20 Plated

3шт.

28

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

(0.5kg) L.O.

1шт.

29

VV12416039140

BOLT

10, Pipe Joint

1шт.

30

VV11980239450

PIPE ASSY.

Lub. Oil

1шт.

31

VV12900559830

BOLT

Assy., Joint, Includes Ref. 32 & 33

1шт.

32

VV22190080002

SEAL

8S

1шт.

33

VV23857030000

BOLT

Joint 3

1шт.

34

VV22190080002

SEAL

8S

1шт.

35

VV22190100002

SEAL

10S

2шт.

36

VV26366060002

NUT,M6

M6

1шт.
