(240-01[1]) - GUARD INSTAL (CANOPY)

Запчасти Case CX31B (240-01[1]) - GUARD INSTAL (CANOPY) (00) - GENERAL & PICTORIAL INDEX

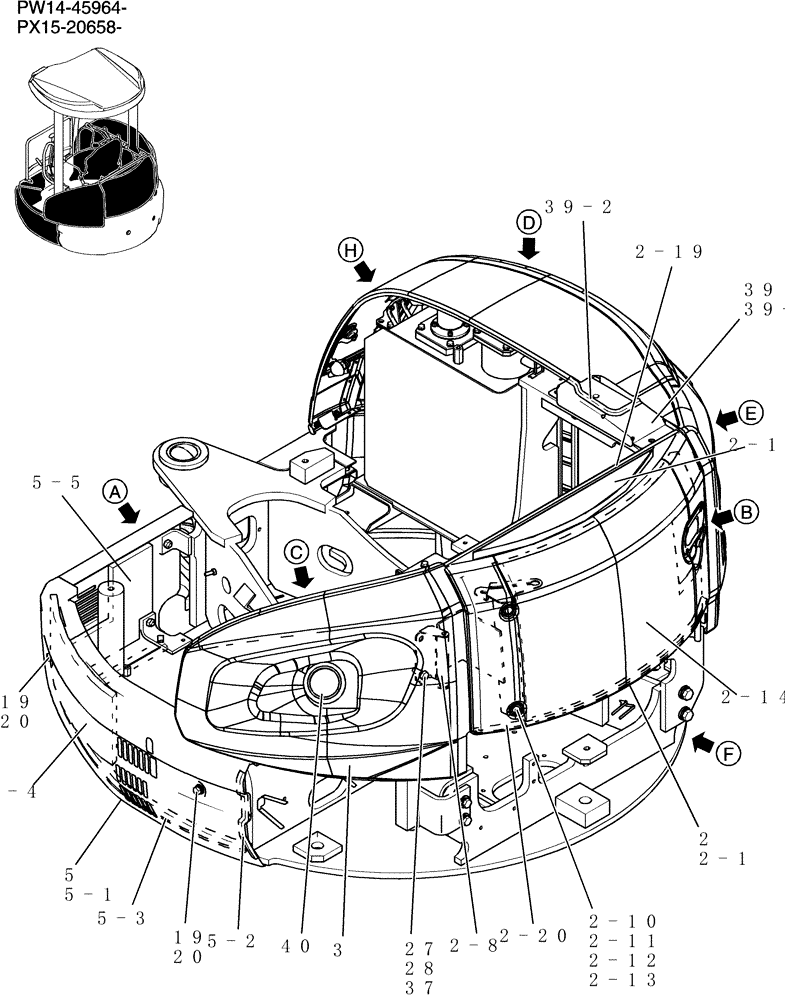

Схема запчастей Case CX31B - (240-01[1]) - GUARD INSTAL (CANOPY) (00) - GENERAL & PICTORIAL INDEX
5-4
19
2-8
2-15
19
2-14
3
37
2-10
39-2
2-20
5-2
2-11
28
2-13
20
20
2-12
5-1
39
2
39-1
27
40
2-1
2-19
5-3
5
5-5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW21C00032F1

Guard (Canopy)

1шт.

2

PW22C00021F1

ENGINE HOOD

Bonnet

1шт.

2-1

PW22C01148P1

ACCESS COVER

Bonnet

1шт.

2-8

PW22C01161P2

CHECK VALVE

Hinge

1шт.

2-10

PW21C01413P1

CAPSCREW

Cap

2шт.

2-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

2-12

ZW26X08000

LOCK WASHER

Lock

2шт.

2-13

ZN18C08007

NUT

2шт.

2-14

PW22C01159P1

FOAM INSULATION

1шт.

2-15

PW22C01130P1

FOAM INSULATION

1шт.

2-19

YR21C01165D8

WEATHERSTRIP

1шт.

2-20

YN21C01712DD

WEATHERSTRIP

1шт.

3

PW21C01820F1

COVER ASSY

(Primer Colored)

1шт.

5

PW21C01804F1

COVER ASSY

Incls. Refs. 5-1 - 5-5

1шт.

5-1

PW21C01790P1

COVER ASSY

1шт.

5-2

PM21C01233P1

RUBBER

1шт.

5-3

PM21C01152DV

WEATHERSTRIP

1шт.

5-4

PW21C01683P1

FOAM INSULATION

1шт.

5-5

PW21C01684P1

FOAM INSULATION

1шт.

19

PA41C01005D3

BOLT

Sems

2шт.

20

YT21C01187P2

WASHER

2шт.

27

ZW26X12000

LOCK WASHER

2шт.

28

2418T10357

WASHER

2шт.

37

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

2шт.

39

PW21C01701F1

COVER ASSY

Cover

1шт.

39-1

PW21C01796P1

COVER

Cover

1шт.

39-2

YJ21C01079D3

WEATHERSTRIP

1шт.

40

PM20P01083P1

GROMMET

1шт.
