(006-17[1]) - PAINT COLOR

Запчасти Case CX31B (006-17[1]) - PAINT COLOR (00) - GENERAL & PICTORIAL INDEX

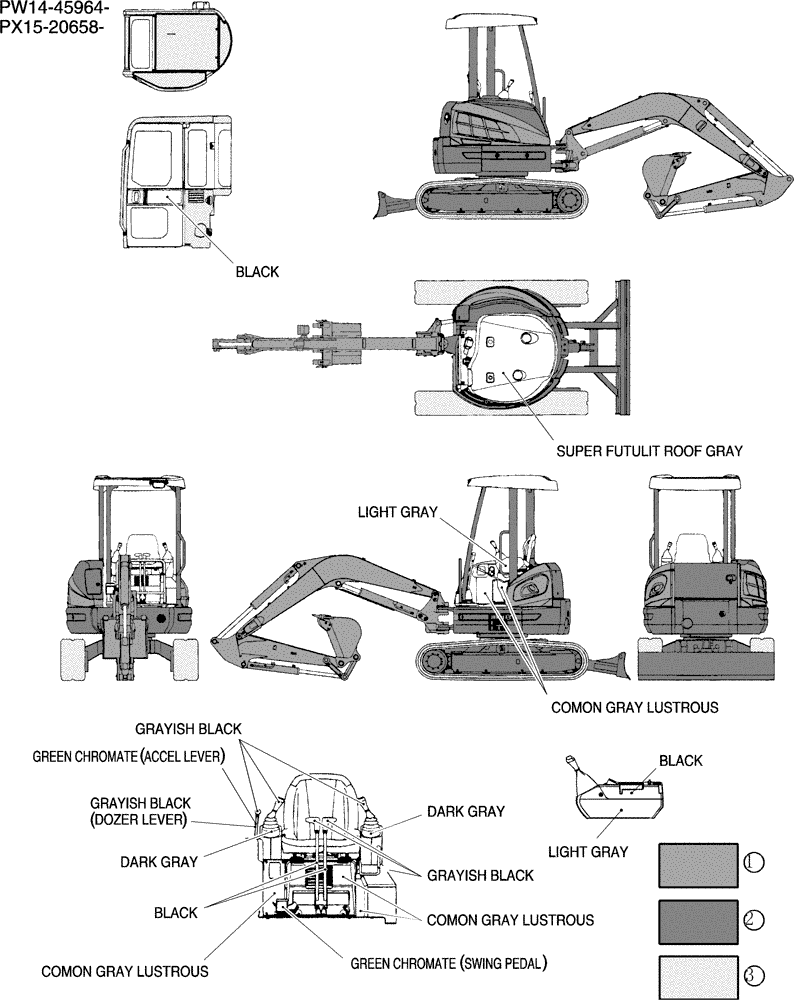

Схема запчастей Case CX31B - (006-17[1]) - PAINT COLOR (00) - GENERAL & PICTORIAL INDEX
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PV09T00006D4

Part: Body Attachment, Colour: Acera Mi/C Yellow, Poly Urethane 16Kg Can.

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

1

PV09T00006D5

Part: Body Attachment, Colour: Acera Mi/C Yellow, Poly Urethane 4Kg Can.

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

1

PV09T00006D6

Part: Body Attachment, Colour: Acera Mi/C Yellow, Poly Urethane 1Kg Can.

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

1

PV09T00006D7

Part: Body Attachment, Colour: Acera Mi/C Yellow, SR3000 Curing Agent 15Kg Can

1шт.

2

PV09T00006DB

Part:Low Canopy Guard, Colour: Common Gray Lusturous, Poly Urethane 16Kg Can

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

2

PV09T00006DC

PAINT

Part:Low Canopy Guard, Colour: Common Gray Lusturous, Poly Urethane 4Kg Can

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

2

PV09T00006DD

Part:Low Canopy Guard, Colour: Common Gray Lusturous, Poly Urethane 1Kg Can

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

2

YT09T00001DV

PAINT

Part:Low Canopy Guard, Retan Pg80 Curing Agent 4Kg Can

1шт.

2

YT09T00001DW

PAINT

Part:Low Canopy Guard, Retan Pg80 Curing Agent 1Kg Can

1шт.

3

PV09T00006DE

Part:Cab, Colour: Fk Gray Lusturous, Poly Urethane 16Kg Can

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

3

PV09T00006DF

PAINT

Part:Cab, Colour: Fk Gray Lusturous, Poly Urethane 4Kg Can

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

3

PV09T00006DG

Part:Cab, Colour: Fk Gray Lusturous, Poly Urethane 1Kg Can

1шт.

SR3000 Coating 5 Curing Agent 1

1шт.

Polyurethane coating is of two component type. The coating requires the specialized curing agent in the following ratio.

1шт.

Retan PG80 Coating 10 Curing Agent 1

1шт.

3

YT09T00001DV

PAINT

Part:Cab, Colour: Fk Gray Lusturous, Retan Pg80 Curing Agent 4Kg Can

1шт.

3

YT09T00001DW

PAINT

Part:Cab, Colour: Fk Gray Lusturous, Retan Pg80 Curing Agent 1Kg Can

1шт.

PV09T00001D9

PAINT

Part: Control Operator, Colour: Grayish Black, Normal Drying 16Kg Can, Normal Drying PV09T00001DC 300 mml

1шт.

PV09T00001DA

PAINT

Part: Control Operator, Colour: Grayish Black, Normal Drying 4Kg Can, Normal Drying PV09T00001DC 300 mml

1шт.

PV09T00001DB

PAINT

Part: Control Operator, Colour: Grayish Black, Normal Drying 1Kg Can, Normal Drying PV09T00001DC 300 mml

1шт.

YN09T00001D9

Part; Control Opeartor, Colour: Dark Gray, Normal Drying 16Kg Can, Normal Drying YN09T00001DC 300 mml

1шт.

YN09T00001DA

Part; Control Opeartor, Colour: Dark Gray, Normal Drying 4Kg Can, Normal Drying YN09T00001DC 300 mml

1шт.

YN09T00001DB

Part; Control Opeartor, Colour: Dark Gray, Normal Drying 1Kg Can, Normal Drying YN09T00001DC 300 mml

1шт.

NOTE: Polyurethane coating is of two component type. The coating and curing agent are in the following ratio.

1шт.

SR3000 5:1 (Weight distribution ratio)

1шт.

Retan PG80 10:1 (weight Distribution ratio)

1шт.
