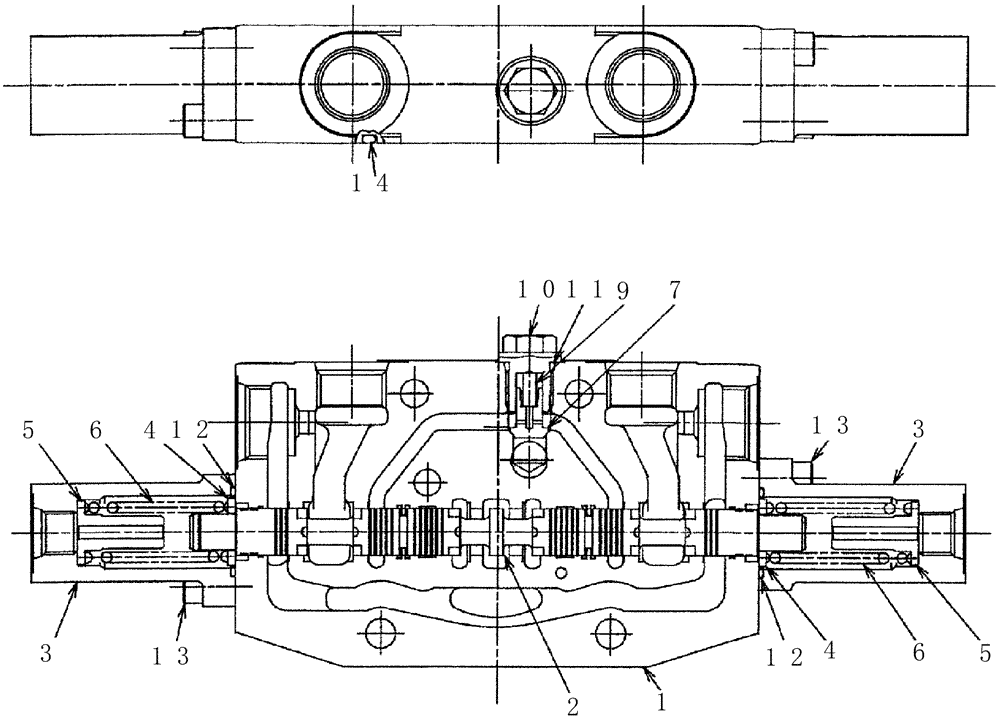

Запчасти Case CX31B (HC006-01) - VALVE ASSY, CONTROL (SERVICE) (00) - GENERAL & PICTORIAL INDEX

PX30V00052F1

VALVE SECTION

Assy, Control (Service)

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

6

NSS

NOT SOLD SEPARAT

End spool

1шт.

7

PF30V00005S009

POPPET

1шт.

8

PF30V00005S010

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PF30V00005S012

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

Cap

4шт.

15

PR30V00007S014

PLUG

2шт.

16

ZD12P01400

O-RING

2шт.

17

PH50T00001F1

PLUG

Assy (See HC023)

2шт.

k

PX30V00052R100

REPAIR KIT

Consists Of Item 2X1, 3X1, 4X1, 5X1

1шт.
