/ / / / / / / / (01-004) - COUNTERWEIGHT INSTAL

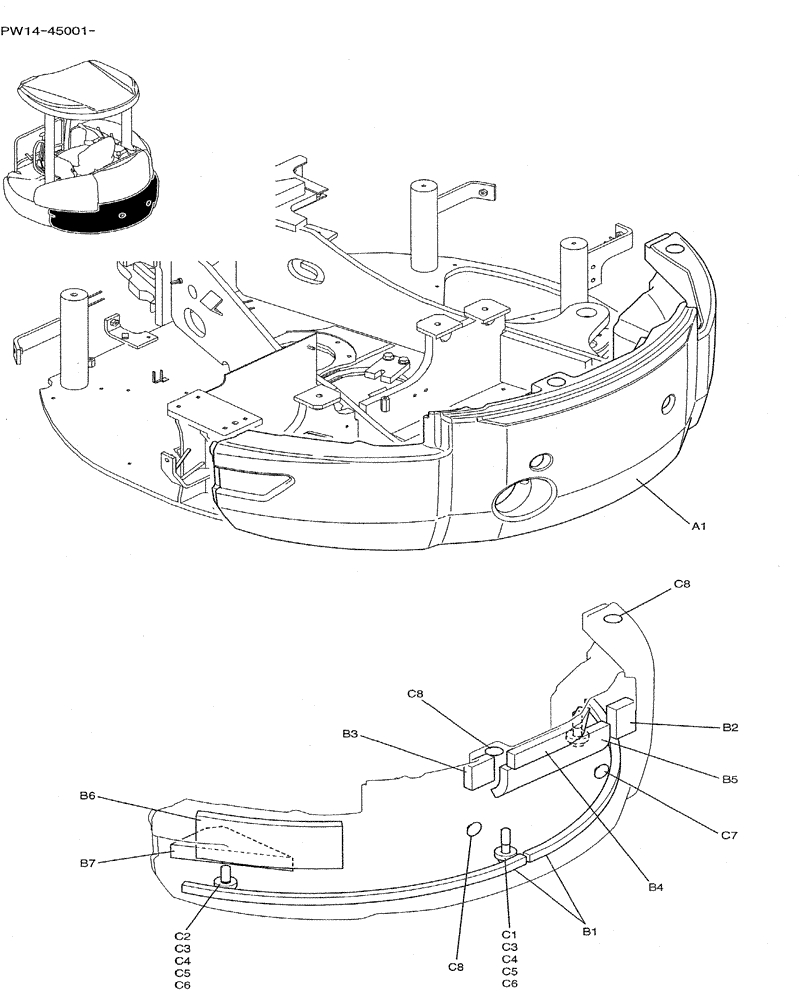

Запчасти Case CX31B (01-004) - COUNTERWEIGHT INSTAL (39) - FRAMES AND BALLASTING
b6
c4
b2
b7
c2
c3
b3
b1
c6
c5
c8
c1
c4
c3
c8
b5
a1
c6
c8
c7
b4
c5
PW60C00020F1
INSTAL
1шт.
a1
PW60C00013P1
COUNTERWEIGHT
1шт.
PW60C00018F1
ASSY
1шт.
b1
PW60C01019P1
RUBBER
2шт.
b2
PW60C01020P1
FOAM INSULATION
1шт.
b3
PW60C01024P1
FOAM INSULATION
1шт.
b4
PW60C01026P1
FOAM INSULATION
1шт.
b5
PW60C01023P1
FOAM INSULATION
1шт.
b6
PW60C01027P1
FOAM INSULATION
1шт.
b7
PW60C01028P1
FOAM INSULATION
1шт.
PW60C00019F1
INSTAL
1шт.
c1
HS18C20090G1
BOLT
CAP
1шт.
c2
HS18C20065G1
BOLT
CAP
2шт.
c3
HY26Y21050G4
WASHER
3шт.
g4
PM60C01022D1
SHIM
(1.0)
3шт.
g5
PM60C01022D2
SHIM,2.0mm Thk
3шт.
c6
PM60C01022D3
SHIM
(3.2)
3шт.
c7
YT60C01007P1
PLUG
2шт.
c8
LE60C01028P1
PLATE
2шт.
