(01-081) - RELAY ASSY

Запчасти Case CX31B (01-081) - RELAY ASSY (55) - ELECTRICAL SYSTEMS

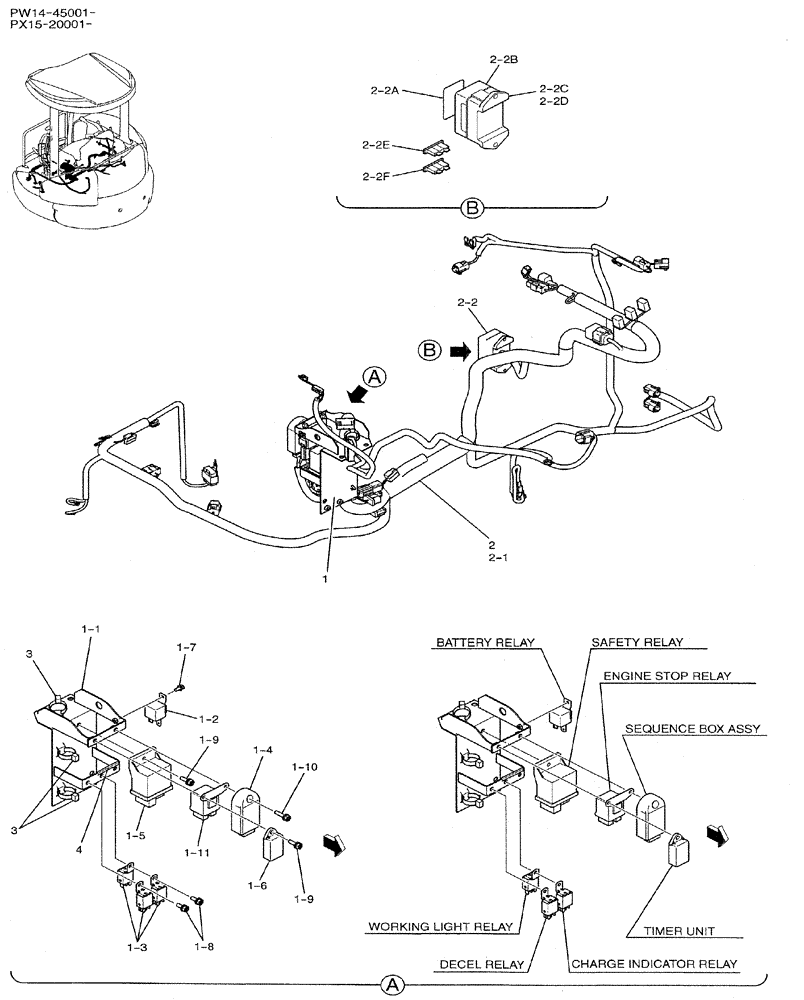

Схема запчастей Case CX31B - (01-081) - RELAY ASSY (55) - ELECTRICAL SYSTEMS
1-8
2-2d
1-9
2-2e
1-2
4
2-2
3
1-1
2-2f
2-1
2-2c
1-5
1-7
1-10
1-11
1-9
2
3
2-2a
1-6
2-2b
1-3
1-4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX24E00007F1

RELAY

ASSY

1шт.

1

PX24E00008F1

KIT

ASSY

1шт.

1-1

PX24E01005P1

BRACKET

1шт.

1-2

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.

1-3

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

3шт.

1-4

PA24S00002P3

RELAY,DC12V

(Used for Sequence Box)

1шт.

1-5

PX24S00001P1

RELAY

(Used for Safety)

1шт.

1-6

PH25S00002P1

TIMER

1шт.

1-7

ZM61C05012

BOLT

SEMS

1шт.

1-8

ZM61C06016

BOLT

SEMS

2шт.

1-9

ZM61C06020

BOLT

SEMS

2шт.

1-10

ZM61C06025

BOLT

SEMS

1шт.

1-11

PX24S00003P1

RELAY

(Used for Engine Stop, Glow)

1шт.

2

PX14E01001P1

HARNESS

1шт.

2-1

NSS

NOT SOLD SEPARAT

1шт.

2-2

PW73E00003F1

FUSE BOX

ASSY

1шт.

2-2a

PW73E01004P1

LABEL

1шт.

2-2b

2479U1458S2

COVER

1шт.

2-2c

2479U1458S1

BASE

1шт.

2-2d

2479U1458S3

BLOCK

1шт.

2-2e

2479R655S8

FUSE,10 Amp

2шт.

2-2f

YN73E00001S022

FUSE,30 Amp

7шт.

3

YN03E01001D5

CLIP

3шт.

4

YN22M01006D5

BUSHING,50mm L

1шт.
