(08-003) - FLYWHEEL HOUSING & OIL PUMP

Запчасти Case CX31B (08-003) - FLYWHEEL HOUSING & OIL PUMP (10) - ENGINE

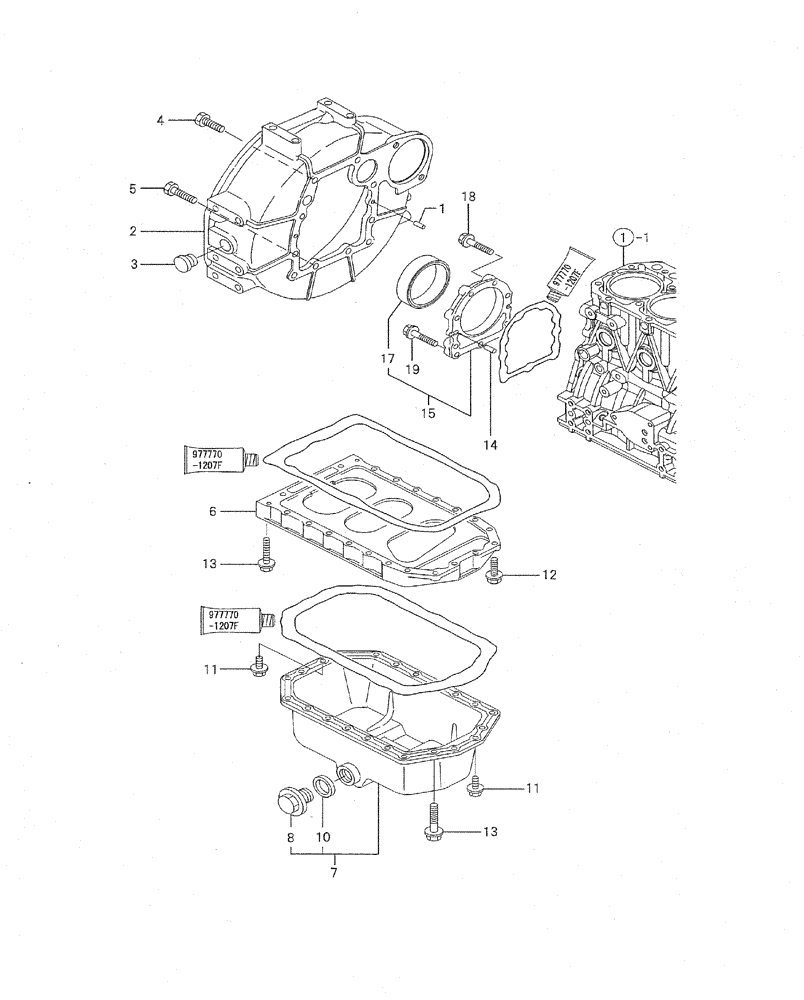

Схема запчастей Case CX31B - (08-003) - FLYWHEEL HOUSING & OIL PUMP (10) - ENGINE
3
7
11
1
14
8
15
4
17
19
2
13
11
6
12
10
13
1
5
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV12910001580

PIN,M8 x 16mm

PARALLEL 8 X 16

2шт.

2

VV12961201600

HOUSING

FLYWHEEL

1шт.

3

VV11962001750

CAP

FLYWHEEL COVER

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M10 X 25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

M10X30

4шт.

6

VV12910001730

SPACER

OIL SUMP

1шт.

7

VV12910001760

SUMP

ASSY, OIL

1шт.

8

VV11964001640

DRAIN PLUG,M22

M22

1шт.

10

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

WASHER 22S

1шт.

11

VV26106080162

BOLT,M8 x 16mm

M8 X 16 PLATED

4шт.

12

VV26106080252

BOLT,M8 x 25mm

M8 X 25 PLATED

2шт.

13

VV26106080452

BOLT,M8 x 45mm

M8 X 45 PLATED

20шт.

14

VV12910001580

PIN,M8 x 16mm

PARALLEL 8 X 16

2шт.

15

VV12910001640

BOX

CASE ASSY, OIL SEAL

1шт.

17

VV12979501780

OIL SEAL

1шт.

18

VV12948601670

BOLT,M8 x 30mm

M8 X 30, COLLAR HD

6шт.

19

VV26106080352

BOLT,M8 x 35mm

M8 X 35 PLATED

3шт.
