(35.359.AE[12A]) - CONTROL, LINES, VALVE, NIBBLER & BREAKER WITH, ACCUMULATOR

Запчасти Case CX31B (35.359.AE[12A]) - CONTROL, LINES, VALVE, NIBBLER & BREAKER WITH, ACCUMULATOR (35) - HYDRAULIC SYSTEMS

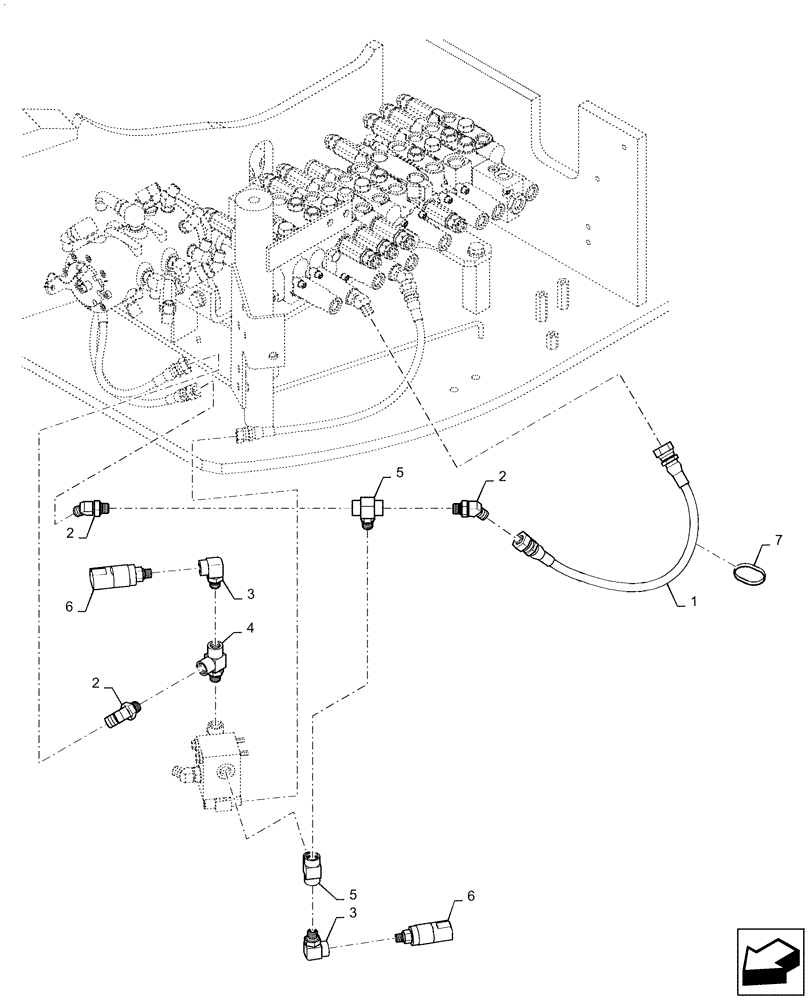

Схема запчастей Case CX31B - (35.359.AE[12A]) - CONTROL, LINES, VALVE, NIBBLER & BREAKER WITH, ACCUMULATOR (35) - HYDRAULIC SYSTEMS
4
6
2
5
3
5
2
6
3
7
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

HX23L03038DX

HOSE

C/V Pa2 - Shut/V A

1шт.

2

HH45S04004G1

45 ELBOW

3шт.

3

PS62H01001P1

90 ELBOW

2шт.

4

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

5

2444Z4239

TEE

2шт.

6

PS50S00001F1

PRESSURE SWITCH

(Used for Hyd Low Pressure)

2шт.

7

PY01P01043D3

CABLE TIE,188mm L

1шт.
