(35.359.AB[21]) - VALVE SECTION, ANGLE, DOZER

Запчасти Case CX36B (35.359.AB[21]) - VALVE SECTION, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS

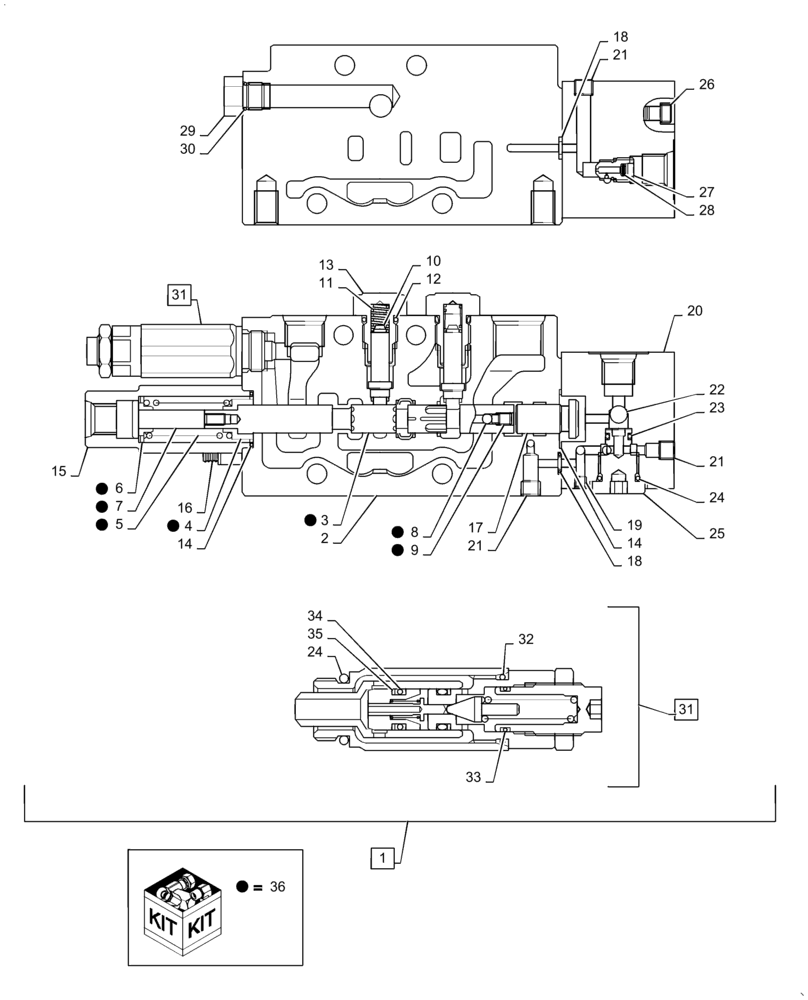

Схема запчастей Case CX36B - (35.359.AB[21]) - VALVE SECTION, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS
26
29
25
36
10
19
28
18
1
36
35
21
32
31
21
27
13
3
36
9
11
14
36
18
34
30
36
12
20
36
15
33
36
24
17
6
14
31
2
23
4
22
36
7
16
5
8
21
36
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX30V00086F1

VALVE SECTION

Assy, Supply & Travel Independent, Incl 1 - 35

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Incl in 1, 36

1шт.

4

NSS

NOT SOLD SEPARAT

Seat, Incl in 1, 36

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in 1, 36

1шт.

6

NSS

NOT SOLD SEPARAT

Seat, Incl in 1, 36

1шт.

7

NSS

NOT SOLD SEPARAT

Spool, Incl in 1, 36

1шт.

8

NSS

NOT SOLD SEPARAT

Ball, Incl in 1, 36

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 36

1шт.

10

PW30V01009S002

POPPET

2шт.

11

PH30V00014S013

SPRING

2шт.

12

ZD12P01100

O-RING

2шт.

13

PW30V01009S005

PLUG

2шт.

14

PW30V01008S011

O-RING

2шт.

15

PM30V00021S013

COVER

1шт.

16

PM30V00021S014

SCREW

2шт.

17

PX30V00050S014

PISTON

1шт.

18

ZD11P00600

O-RING

2шт.

19

2436U1317S22

PLUG

2шт.

20

PX30V00086S013

BODY

1шт.

21

2436U1427S25

PLUG

3шт.

22

2483U156S44

BALL

1шт.

23

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

1шт.

24

ZD12P01400

O-RING

2шт.

25

2436U1317S66

PLUG

1шт.

26

ZS23C05050

SCREW,Hex Socket Head, M5 x 50mm

Cap

3шт.

27

PX30V00086S020

ORIFICE

1шт.

28

PX30V00050S019

FILTER

1шт.

29

PX30V00050S012

PLUG

1шт.

30

PX30V00050S013

O-RING

1шт.

31

PR22V00005F1

VALVE PRESSURE RELIE

Incl 24, 32 - 35

1шт.

32

ZD12P01500

O-RING

1шт.

33

2436R612S13

O-RING

1шт.

34

PH22V00003S013

O-RING

2шт.

35

PH22V00003S014

BACK-UP RING

2шт.

36

PX30V00086R100

REPAIR KIT

Incl 3 - 9

1шт.
