(90.110.AP[01]) - PLATE, GROUP, FLOOR, CAB - HCP

Запчасти Case CX36B (90.110.AP[01]) - PLATE, GROUP, FLOOR, CAB - HCP (90) - PLATFORM, CAB, BODYWORK AND DECALS

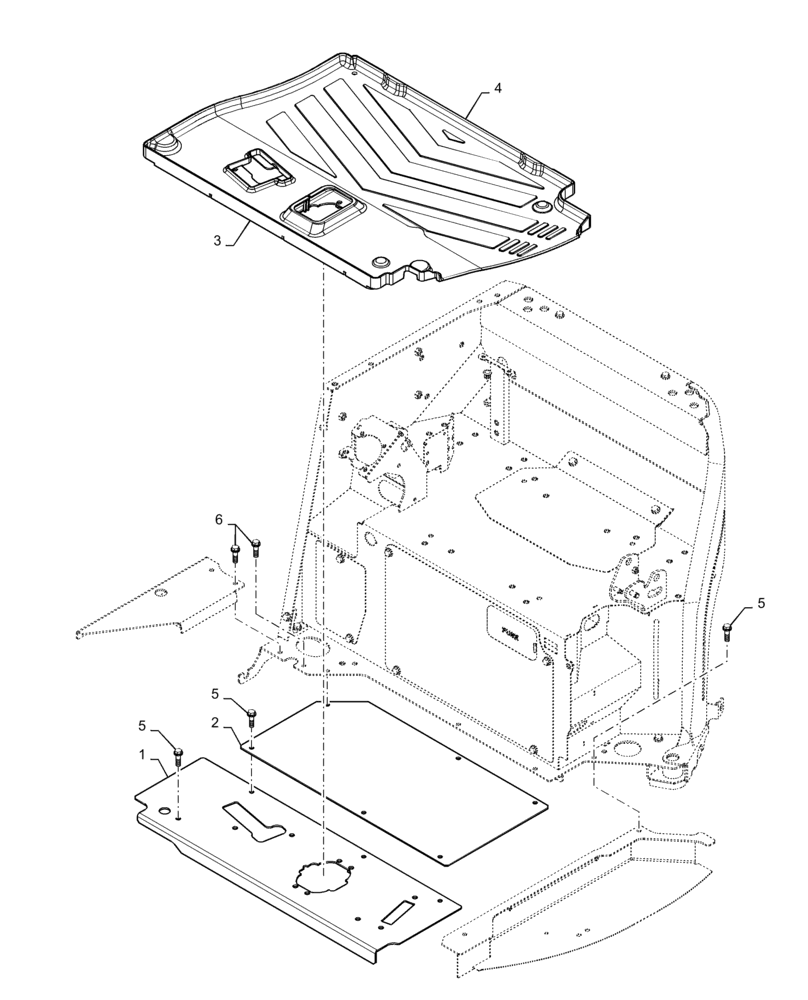

Схема запчастей Case CX36B - (90.110.AP[01]) - PLATE, GROUP, FLOOR, CAB - HCP (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
3
6
5
1
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX03M01218P1

PLATE

Floor, Serial Range: PX17-40001-PX17-40108

1шт.

1

PX03M01218P2

PLATE

Floor, Serial Range: PX17-40109-PX17-40764

1шт.

1

PX03M01218P3

PLATE

Floor, Start Serial: PX17-40765

1шт.

2

PX03M01138P1

COVER

1шт.

3

PX26M00010P1

FLOOR MAT

FWD

1шт.

4

PX26M00009P1

FLOOR MAT

AFT

1шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Serial Range: PX17-40001-PX17-40012

8шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Serial Range: PX17-40013-PX17-40138

6шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Start Serial: PX17-40139

7шт.

5

ZM73C08030

BOLT,M8x30mm - Course Thread

, Serial Range: PX17-40013-PX17-40138

2шт.

5

ZM73C08030

BOLT,M8x30mm - Course Thread

, Start Serial: PX17-40139

1шт.

6

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.
