(016-01[1-01]) - COUNTERWEIGHT INSTALLATIONS

Запчасти Case CX36B (016-01[1-01]) - COUNTERWEIGHT INSTALLATIONS (39) - FRAMES AND BALLASTING

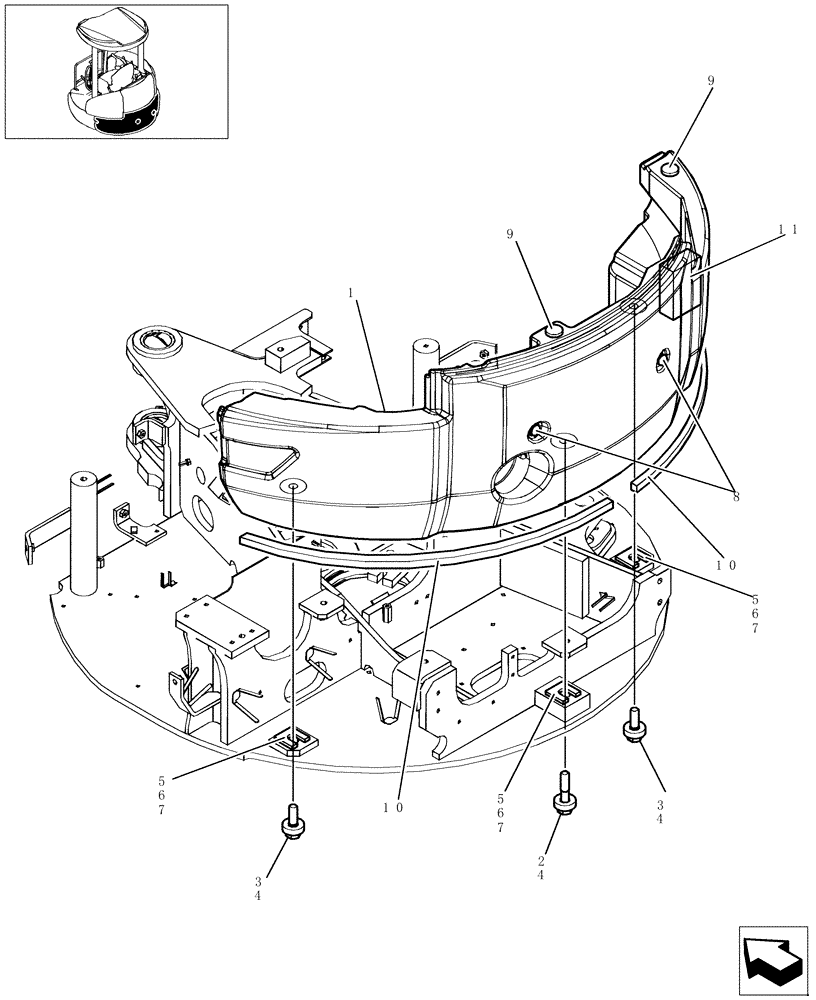

Схема запчастей Case CX36B - (016-01[1-01]) - COUNTERWEIGHT INSTALLATIONS (39) - FRAMES AND BALLASTING
3
9
7
8
9
6
1
10
6
7
10
3
4
4
7
11
5
5
5
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PW60C00013P1%C

COUNTERWEIGHT

1шт.

2

HS18C20090G1

BOLT

1шт.

3

HS18C20065G1

BOLT

2шт.

4

HY26Y21050G4

WASHER

3шт.

5

PM60C01022D1

SHIM

1,0

3шт.

6

PM60C01022D2

SHIM,2.0mm Thk

3шт.

7

PM60C01022D3

SHIM

3,0

3шт.

8

YT60C01007P1

PLUG

2шт.

9

LE60C01028P1

PLATE

2шт.

10

PW60C01019P1

RUBBER

2шт.

11

PW60C01020P1

FOAM INSULATION

1шт.

PW32T01141F2

KIT

Counterweight Kit; This is an additional counterweight add-on. It is not the above parts in a kit.

1шт.
