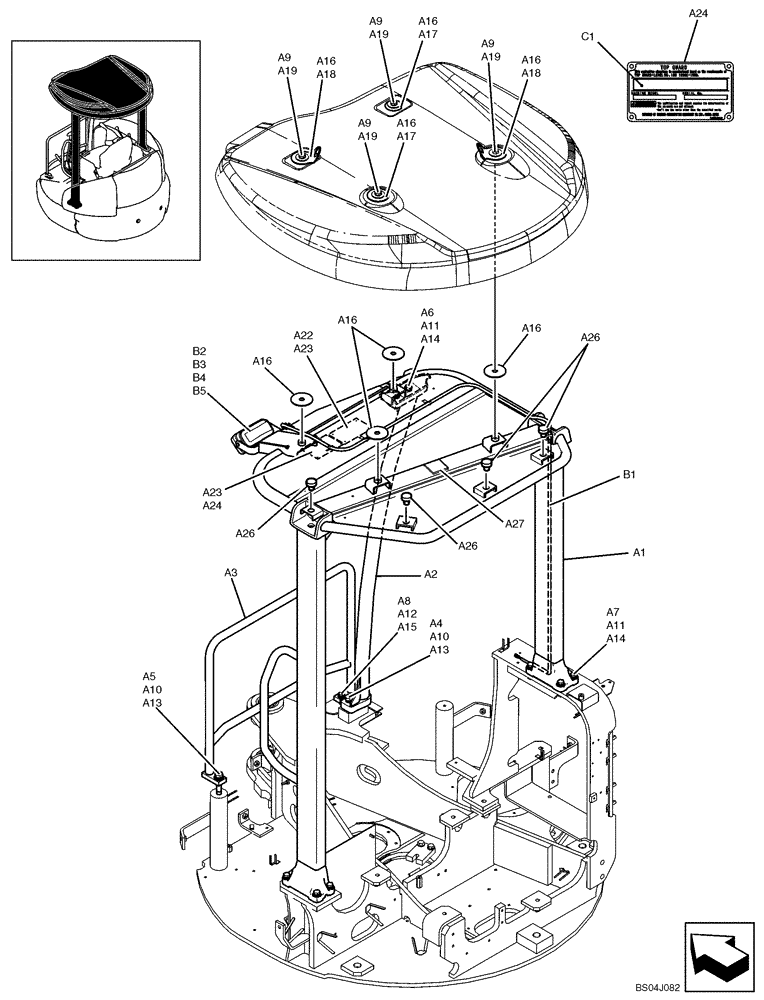

Запчасти Case CX36B (200-17[1]) - CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX36B - (200-17[1]) - CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://www.partsell.ru/storage/images/casece/279300.png)
b3
a14
b2
a13
a11
c1
b5
a19
a16
a8
a2
a1
a17
a9
a6
a18
a5
a27
a9
a7
a16
a12
b4
a10
a16
a14
b1
a19
a17
a19
a24
a16
a16
a16
a16
a26
a26
a9
a11
a22
a9
a15
a4
a19
a13
a24
a10
a23
a18
a3
a26
a23
a1
PH06C01153P1%C
SUPPORT
1шт.
a2
PW06C01126P1%C
SUPPORT
1шт.
a3
PW41C00013P1%C
HANDRAIL
1шт.
a4
ZS18C16065
SCREW,Hex, M16 x 65mm
1шт.
a5
ZS18C16100
SCREW,Hex, M16 x 100mm
1шт.
a6
ZS18C12035
SCREW,Hex, M12 x 35mm
2шт.
a7
ZS18C12055
SCREW,Hex, M12 x 55mm
8шт.
a8
ZS18C10040
SCREW,Hex, M10 x 40mm
1шт.
a9
ZS18C12030
SCREW,Hex, M12 x 30mm
4шт.
a10
ZW26X16000
LOCK WASHER
2шт.
a11
ZW26X12000
LOCK WASHER
10шт.
a12
ZW26X10000
LOCK WASHER
1шт.
a13
ZW16H16000
WASHER
2шт.
a14
ZW16H12000
WASHER
10шт.
a15
ZW16H10000
WASHER
1шт.
a16
PM06C01096P1
RUBBER
8шт.
a17
PM06C01042P1
WASHER
2шт.
a18
PW06C01088P1
PLATE
2шт.
a19
2418T22593
WASHER
4шт.
a22
PW20T01079P1
PLATE
1шт.
a23
PB06C01093D1
RIVET
4шт.
a24
PV20T01018P1
IDENTITY PLATE
1шт.
a26
2420Z1340D1
PLUG
4шт.
a27
PM03M01339P1
RUBBER
1шт.
b1
PW11E01026D4
HARNESS
1шт.
b2
PW80S00003F1
LIGHT ASSY.
See Figure 215-01
1шт.
b3
ZN17F12007
NUT
1шт.
b4
ZW26X12000
LOCK WASHER
1шт.
b5
ZW16X12000
WASHER
1шт.
c1
PW20T01082P1
LABEL
1шт.
