(242-01[1]) - HOODS (CAB)

Запчасти Case CX36B (242-01[1]) - HOODS (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

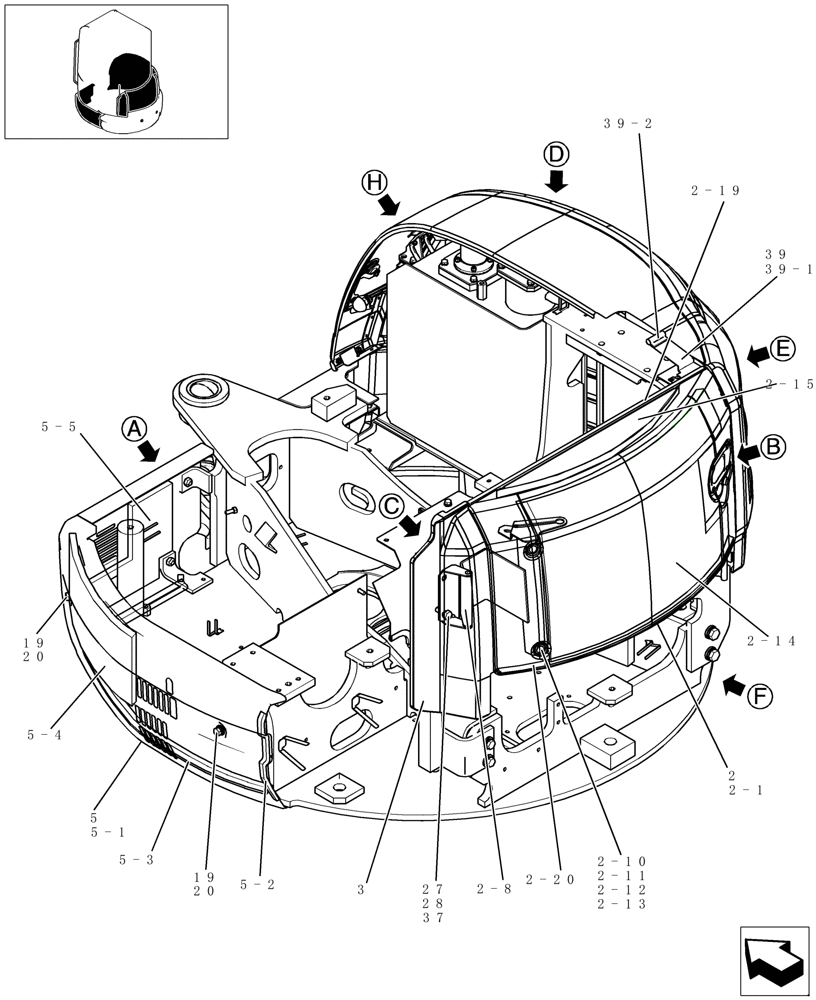

Схема запчастей Case CX36B - (242-01[1]) - HOODS (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS
39-1
5-5
5-1
2-8
2-1
37
5-4
20
5-3
2-13
20
2-20
2-15
19
39-2
39
2-19
27
5
19
28
2-12
2-14
5-2
2
3
2-10
2-11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

PW22C00021F1%C

COVER

Incl. 2-1 - 2-20

1шт.

2-1

PW22C01148P1%C

COVER

1шт.

2-8

PW22C01161P1

CHECK VALVE

1шт.

2-10

PW21C01413P1

CAPSCREW

2шт.

2-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

2-12

ZW26X08000

LOCK WASHER

2шт.

2-13

ZN18C08007

NUT

2шт.

2-14

PW22C01159P1

FOAM INSULATION

1шт.

2-15

PW22C01130P1

FOAM INSULATION

1шт.

2-19

YR21C01165D8

WEATHERSTRIP

1шт.

2-20

YN21C01712DD

WEATHERSTRIP

1шт.

3

PW21C01695F1%C

COVER ASSY

1шт.

5

PW21C01662F1%C

COVER ASSY

Incl. 5-1 - 5-5

1шт.

5-1

PW21C01663P1%C

COVER ASSY

1шт.

5-2

PM21C01233P1

RUBBER

1шт.

5-3

PM21C01152DV

WEATHERSTRIP

1шт.

5-4

PW21C01683P1

FOAM INSULATION

1шт.

5-5

PW21C01684P1

FOAM INSULATION

1шт.

19

PA41C01005D3

BOLT

2шт.

20

YT21C01187P1

WASHER

2шт.

27

ZW26X12000

LOCK WASHER

2шт.

28

2418T10357

WASHER

2шт.

37

ZS18C12030

SCREW,Hex, M12 x 30mm

2шт.

39

PW21C01702F1%C

COVER ASSY

Incl. 39-1, 39-2

1шт.

39-1

PW21C01732P3%C

COVER

1шт.

39-2

LE21C01070DL

WEATHERSTRIP

1шт.
