(242-01[3-01]) - HOODS (CAB)

Запчасти Case CX36B (242-01[3-01]) - HOODS (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

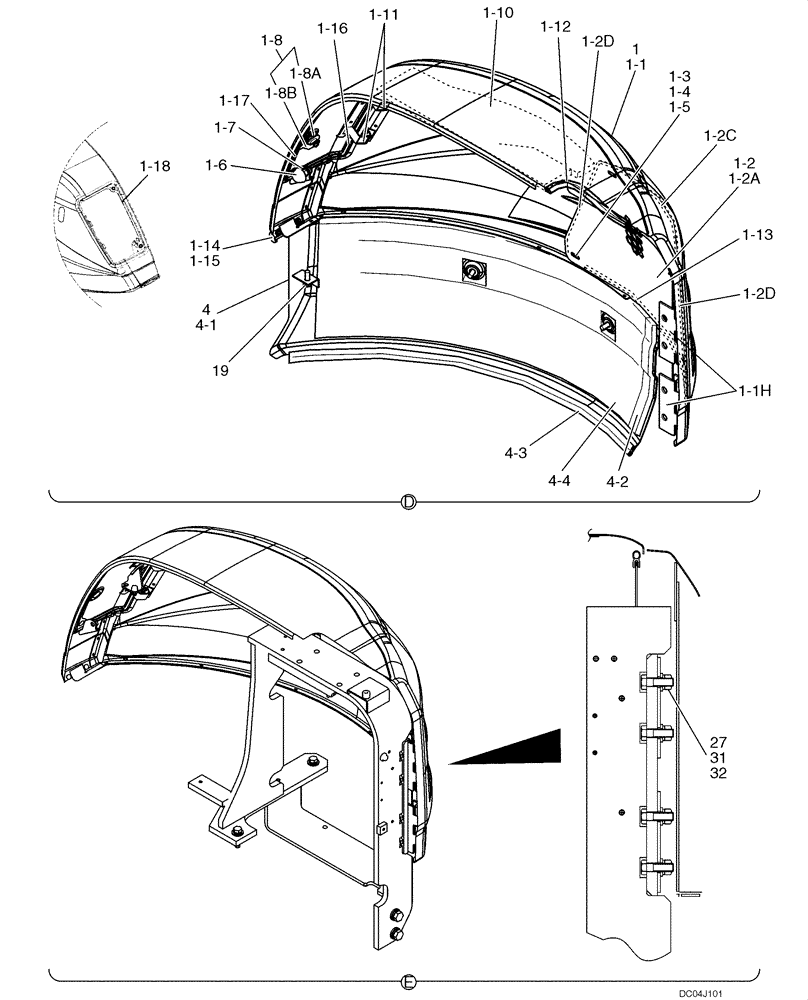

Схема запчастей Case CX36B - (242-01[3-01]) - HOODS (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1-2c
4-2
1-8
1-14
4-3
1-1
1-7
1-3
27
1-5
1-18
4-4
1-10
1-8a
1-15
1-4
1
1-8b
1-2a
32
1-1h
1-11
19
4
1-2d
4-1
1-2d
1-16
1-17
1-2
1-6
1-12
1-13
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PW21C00023F1%C

COVER ASSY

Incl. 1-1 - 1-18

1шт.

1-1

PW21C01667P1%C

COVER

Incl. 1-1H

1шт.

1-1h

PW21C01635P1

HINGE

2шт.

1-2

PW21C01602F1

GUARD ASSY.

Incl. 1-2A, 1-2C, 1-2D

1шт.

1-2a

PW21C01710P1

GUARD

1шт.

1-2c

PW21C01583D2

RUBBER

1шт.

1-2d

PW21C01583D3

RUBBER

2шт.

1-3

ZN18C06005

NUT

6шт.

1-4

ZW26X06000

LOCK WASHER

6шт.

1-5

YT21P01001P1

WASHER

6шт.

1-6

YN21C01321P1

STOP

1шт.

1-7

ZN17F10008

NUT

1шт.

1-8

PM21C01268F1

LOCK

Incl. 1-8A, 1-8B

1шт.

1-8a

YR22C01025P2

LOCK

1шт.

1-8b

PM21C01269P1

PLATE

1шт.

1-10

PW21C01636P1

FOAM INSULATION

1шт.

1-11

PW21C01682P1

RUBBER

2шт.

1-12

YW21C01057D1

WEATHERSTRIP

1шт.

1-13

PW21C01583D1

RUBBER

1шт.

1-14

PW21C01713P1

GUARD

1шт.

1-15

ZS41C05012

CAPSCREW,M5 x 12mm

2шт.

1-16

PW21C01742P3

RUBBER

1шт.

1-17

PW21C01740P3

RUBBER

1шт.

1-18

PE21C01135D8

SEAL

1шт.

1-18

PW21C01534P1

COVER

(Access Door)

1шт.

1-18

PH21C01478P1

PLATE

(Weld to Access Door - PW21C01534P1 and Hinges PW21C01737P1)

1шт.

1-18

PH21C01403P1

PLATE

(Weld to Guard and Hinge PW21C01737P1)

1шт.

1-18

PW21C01737P1

HINGE

(Weld to Plate PH21C01478P1 and PH21C01403P1)

2шт.

4

PW21C01569F1%C

COVER ASSY

Incl. 4-1 - 4-4

1шт.

4-1

PW21C01571P1%C

COVER ASSY

1шт.

4-2

PM21C01233P1

RUBBER

1шт.

4-3

2427P1836D32

WEATHERSTRIP

950mm Long (37-25/64 in)

1шт.

4-4

PW21C01629P1

FOAM INSULATION

1шт.

19

PA41C01005D3

BOLT

1шт.

27

ZW26X12000

LOCK WASHER

4шт.

31

ZN18C12010

NUT

4шт.

32

ZW16H12000

WASHER

4шт.
