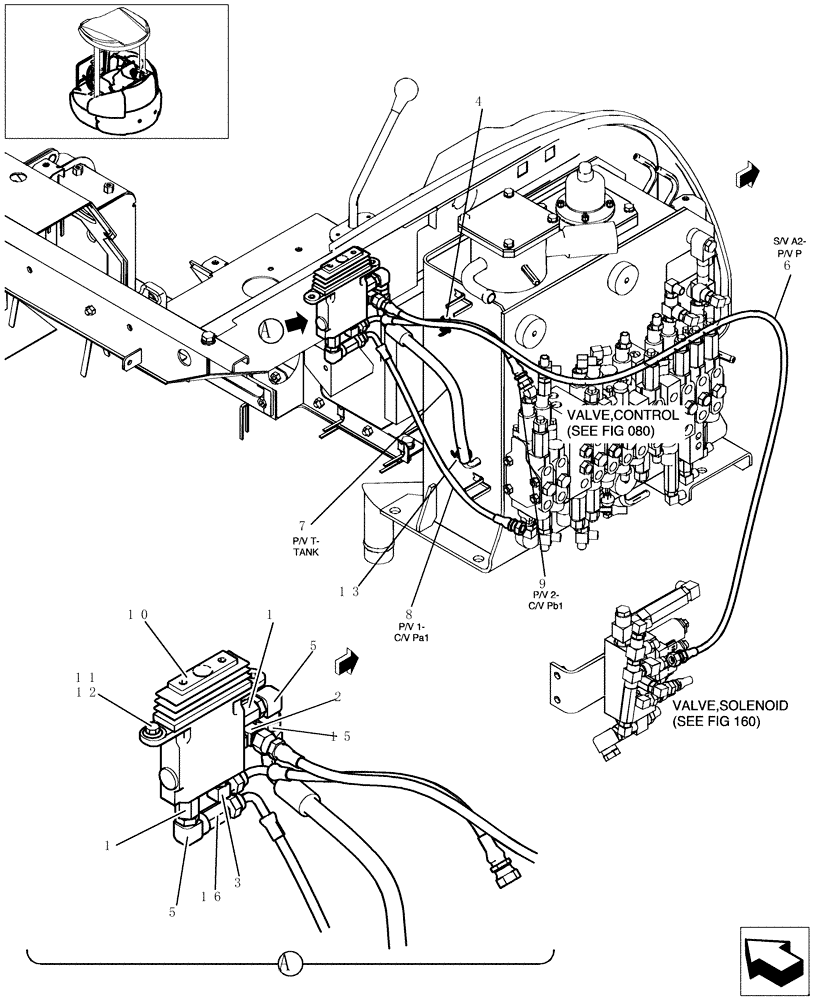

Запчасти Case CX36B (150-72[1-03]) - CONTROL LINES (DOZER) (35) - HYDRAULIC SYSTEMS

1

2444Z2525

HYD CONNECTOR

2шт.

2

HH35S04004G2

90 ELBOW

1шт.

3

HH35S04004G1

90 ELBOW

1шт.

4

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

5

2444Z2894

90 ELBOW

2шт.

6

HX24L04180DX

HOSE ASSY.

1шт.

7

PW68H01024D3

HOSE

1шт.

8

HX33L03042DX

HOSE,4.8mm ID x 420mm L

1шт.

9

HX33L03038DX

HOSE

1шт.

10

PB30V00002F1

PILOT VALVE

See Figure HC885-01

1шт.

11

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

12

ZW16H08000

WASHER

2шт.

13

ZC16X01800

CLIP

1шт.

15

HH25S06004G1

HYD CONNECTOR

1шт.

16

PU64H01002P1

HYD CONNECTOR

1шт.
