(02-007[01]) - IDLER ASSY, CRAWLER

Запчасти Case CX36B (02-007[01]) - IDLER ASSY, CRAWLER (48) - TRACKS & TRACK SUSPENSION

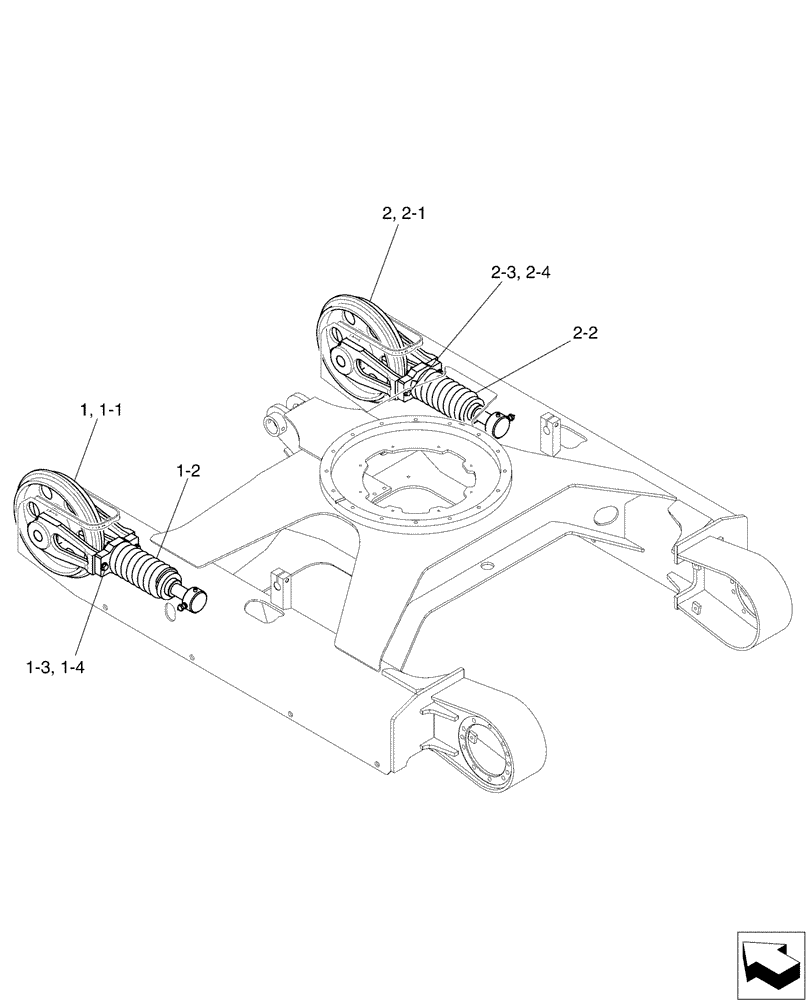

Схема запчастей Case CX36B - (02-007[01]) - IDLER ASSY, CRAWLER (48) - TRACKS & TRACK SUSPENSION
2-1
1
1-4
2-3
2
1-2
2-4
2-2
1-3
1-1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX52D00033F1

IDLER

Assy., Crawler, Incl 1-1 - 1-2

1шт.

1-1

PX52D00034F1

IDLER

Assy.

1шт.

1-2

PX54D00011F1

IDLER

Adjust Assy.

1шт.

1-3

ZS18C10045

SCREW,Hex, M10 x 45mm

Cap

2шт.

1-4

ZW16H10000

WASHER

2шт.

2

PX52D00035F1

IDLER

Assy., Crawler, Incl 2-1 - 2-2

1шт.

2-1

PX52D00036F1

IDLER

1шт.

2-2

PX54D00011F1

IDLER

Adjust Assy.

1шт.

2-3

ZS18C10045

SCREW,Hex, M10 x 45mm

Cap

2шт.

2-4

ZW16H10000

WASHER

2шт.

Выбрано товаров: 10
