(01-030[11]) - VALVE INSTAL

Запчасти Case CX36B (01-030[11]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

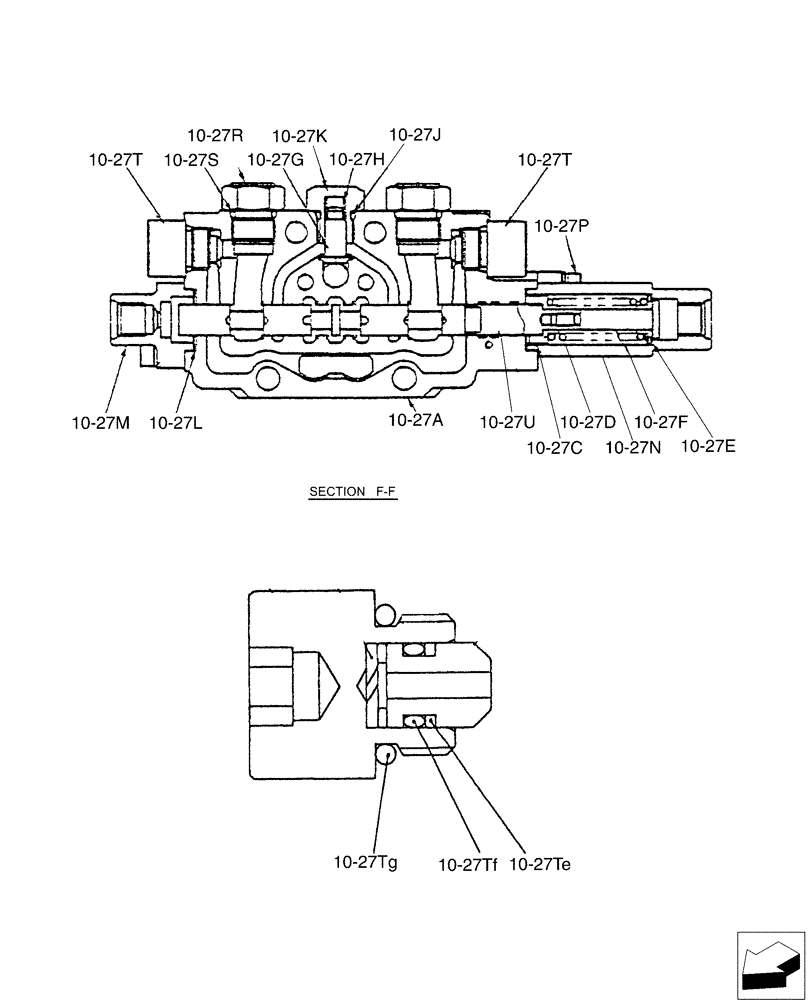

Схема запчастей Case CX36B - (01-030[11]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS
10-27c
10-27tg
10-27j
10-27u
10-27s
10-27te
10-27t
10-27m
10-27h
10-27d
10-27e
10-27f
10-27tf
10-27r
10-27g
10-27a
10-27t
10-27k
10-27p
10-27n
10-27l
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX30V00052F2

VALVE SECTION

Assembly, Service, Incl 10-27A - 10-27U

1шт.

10-27a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-27c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-27d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-27e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-27f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-27g

PF30V00005S009

POPPET

1шт.

10-27h

PF30V00005S010

SPRING

1шт.

10-27j

ZD12P01100

O-RING

1шт.

10-27k

PF30V00005S012

PLUG

1шт.

10-27l

PW30V01008S011

O-RING

2шт.

10-27m

PM30V00021S012

COVER

1шт.

10-27n

PM30V00021S013

COVER

1шт.

10-27p

PM30V00021S014

SCREW

Cap

4шт.

10-27r

PR30V00007S014

PLUG

2шт.

10-27s

ZD12P01400

O-RING

2шт.

10-27t

PH50T00001F1

PLUG

Assy.

2шт.

10-27te

ZD85P00700

BACK-UP RING

1шт.

10-27tf

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

1шт.

10-27tg

ZD12P01400

O-RING

1шт.

10-27u

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00052R200

REPAIR KIT

Consists Of Ref:10-27C (1), 10-27D (1), 10-27E (1), 10-27F (1), 10-27U (1)

1шт.
