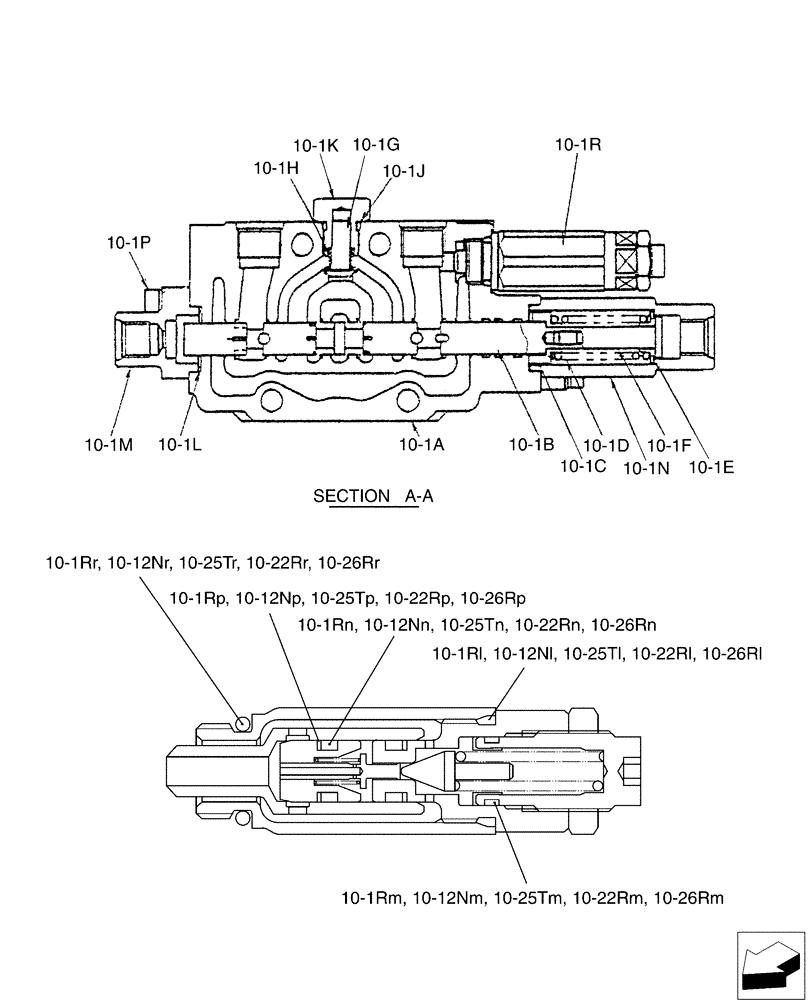

Запчасти Case CX36B (01-031[03]) - VALVE INSTAL - ANGLE DOZER (35) - HYDRAULIC SYSTEMS

10-1

PX30V00048F1

VALVE SECTION

Assembly, Dozer, Incl 10-1A - 10-1Rr

1шт.

10-1a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-1b

NSS

NOT SOLD SEPARAT

Spool

1шт.

10-1c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-1d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-1e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-1f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-1g

PH30V00003S006

POPPET

1шт.

10-1h

PH30V00003S007

SPRING

1шт.

10-1j

ZD12P01100

O-RING

1шт.

10-1k

PH30V00003S009

PLUG

1шт.

10-1l

PW30V01008S011

O-RING

2шт.

10-1m

PM30V00021S012

COVER

1шт.

10-1n

PM30V00021S013

COVER

1шт.

10-1p

PM30V00021S014

SCREW

Cap

4шт.

10-1r

PM22V00005F3

VALVE PRESSURE RELIE

Overload

1шт.

10-1rl

ZD12P01500

O-RING

1шт.

10-1rm

2436R612S13

O-RING

1шт.

10-1rn

PH22V00003S013

O-RING

2шт.

10-1rp

PH22V00003S014

BACK-UP RING

2шт.

10-1rr

ZD12P01400

O-RING

1шт.

10-12nl

ZD12P01500

O-RING

1шт.

10-12nm

2436R612S13

O-RING

1шт.

10-12nn

PH22V00003S013

O-RING

2шт.

10-12np

PH22V00003S014

BACK-UP RING

2шт.

10-12nr

ZD12P01400

O-RING

1шт.

10-22rl

ZD12P01500

O-RING

1шт.

10-22rm

2436R612S13

O-RING

1шт.

10-22rn

PH22V00003S013

O-RING

2шт.

10-22rp

PH22V00003S014

BACK-UP RING

2шт.

10-22rr

ZD12P01400

O-RING

1шт.

10-25tl

ZD12P01500

O-RING

1шт.

10-25tm

2436R612S13

O-RING

1шт.

10-25tn

PH22V00003S013

O-RING

2шт.

10-25tp

PH22V00003S014

BACK-UP RING

2шт.

10-25tr

ZD12P01400

O-RING

1шт.

10-26rl

ZD12P01500

O-RING

1шт.

10-26rm

2436R612S13

O-RING

1шт.

10-26rn

PH22V00003S013

O-RING

2шт.

10-26rp

PH22V00003S014

BACK-UP RING

2шт.

10-26rr

ZD12P01400

O-RING

1шт.

PX30V00048R100

REPAIR KIT

Consists Of Ref:10-1B (1), 10-1C (1), 10-1D (1), 10-1E (1), 10-1F (1)

1шт.
