(05-002) - ENGINE INSTAL (COOLER)

Запчасти Case CX36B (05-002) - ENGINE INSTAL (COOLER) OPTIONAL PARTS

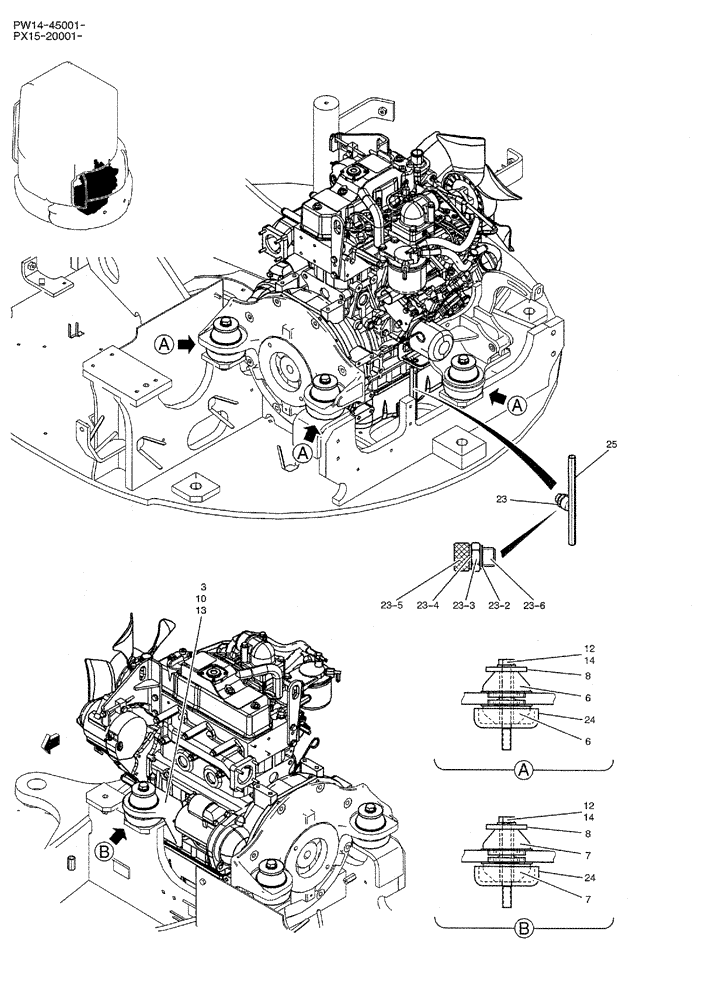

Схема запчастей Case CX36B - (05-002) - ENGINE INSTAL (COOLER) OPTIONAL PARTS
7
24
23-2
23-5
12
23-6
23-4
14
23
13
6
14
6
3
8
23-3
8
10
12
25
7
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW02P00021F1

INSTAL

1шт.

PW02P00018F1

ENGINE

ASSY., SEE FIG. 01-005

1шт.

PW02P00022F1

INSTAL

1шт.

3

PW02P01056P1

BRACKET

1шт.

6

PW02P01054D1

RUBBER MOUNTING

6шт.

7

PW02P01054D2

RUBBER MOUNTING

2шт.

8

PW01P01022P1

WASHER

4шт.

10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

12

ZS18C12120

SCREW,Hex, M12 x 120mm

CAP

4шт.

13

ZW16H10000

WASHER

4шт.

14

ZW16H12000

WASHER

4шт.

23

PW02P01057F1

PLUG,M22 x 1.5

ASSY

1шт.

23-2

LQ02PU1002S002

WASHER

1шт.

23-3

LQ02PU1002S003

BODY

1шт.

23-4

LQ02PU1002S004

O-RING

1шт.

23-5

LQ02PU1002S005

CAP

1шт.

23-6

LQ02PU1002S006

PLUG

1шт.

24

PW02P01041P1

COVER

4шт.

25

PU01P01035P1

HOSE

Hose Assy with Straight Coupler

1шт.

25

PM91Z01005P1

HOSE

Hose Assy with Elbow Coupler

1шт.

25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.
