(06-018) - NAME PLATE INSTALLATION (PW22T00172F1)

Запчасти Case CX50B (06-018) - NAME PLATE INSTALLATION (PW22T00172F1) NAME-PLATE

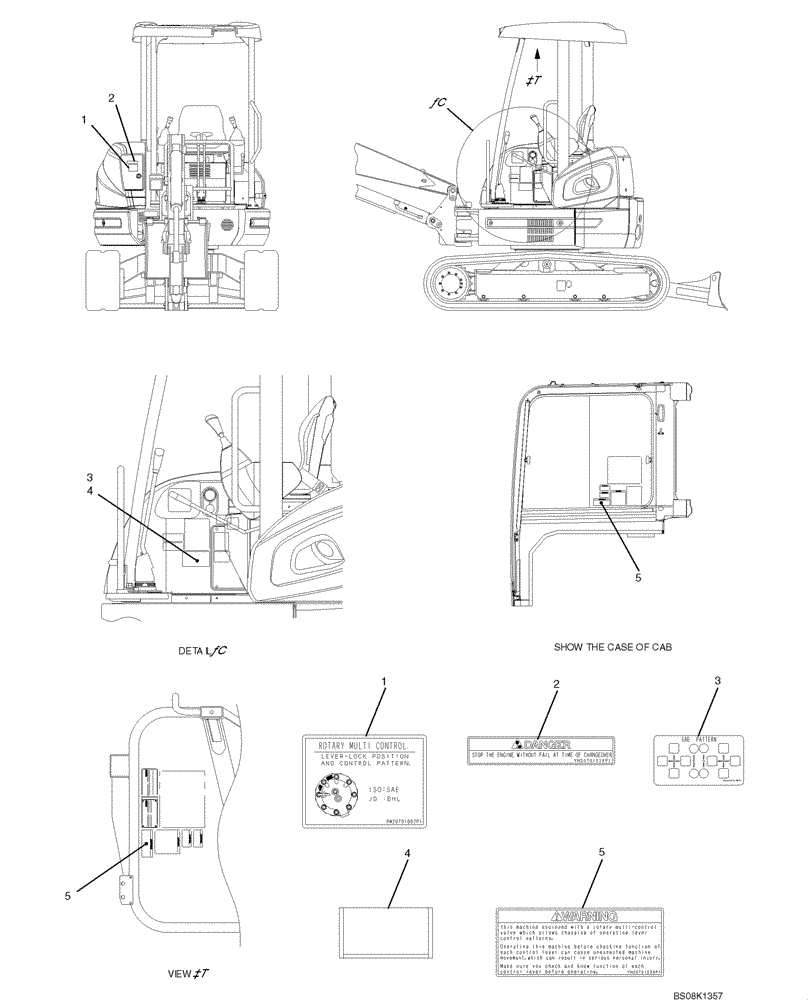

Схема запчастей Case CX50B - (06-018) - NAME PLATE INSTALLATION (PW22T00172F1) NAME-PLATE
2
4
1
1
3
5
5
5
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Name Plate Installation, PW22T00172F1

1шт.

1

PM20T01087P1

LABEL

Decal, Rotary Multi Control Lever-Lock Position and Control Pattern. …

1шт.

2

YN20T01214P1

LABEL

Decal, Danger, Stop the engine without fail at time of changeover…

1шт.

3

YN20T01476P1

LABEL

Decal, Control location and positions

1шт.

4

YN20T01475P1

LABEL

Holder

1шт.

5

YN20T01039P1

WARNING DECAL

Warning, This machine equipped with a rotary multi-control valve which allows changing of…

1шт.
