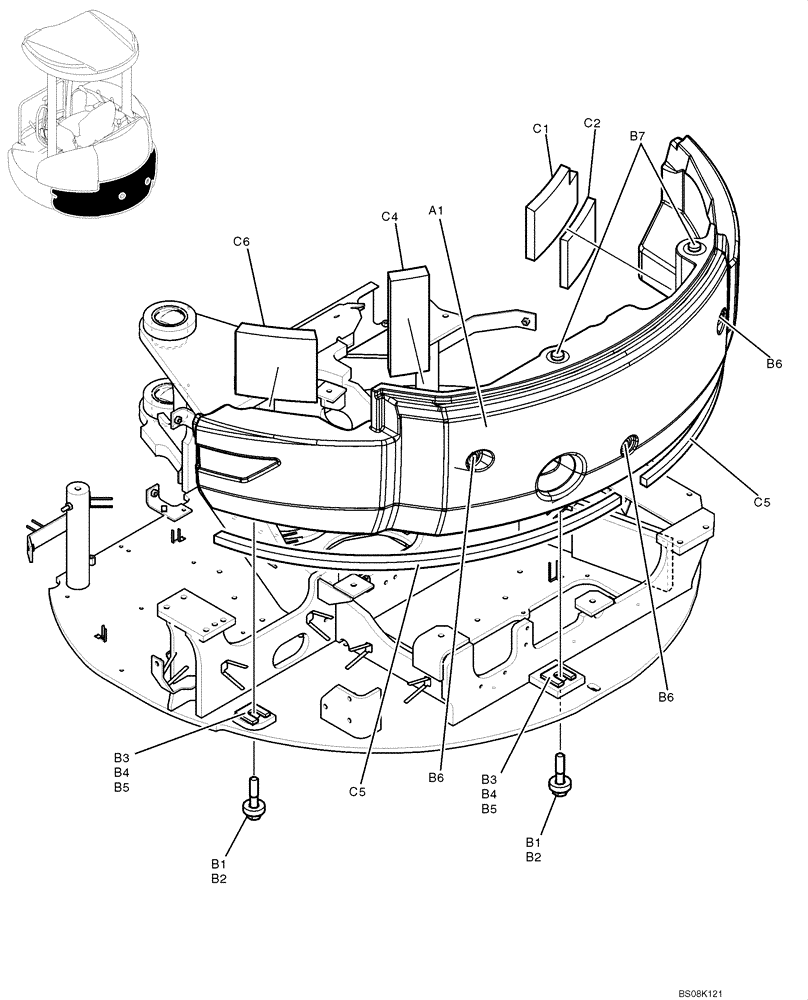

Запчасти Case CX50B (01-004) - COUNTERWEIGHT ASSY (PY60C00014F1, PY60C00012F1, PY60C00013F1) (05) - SUPERSTRUCTURE

COUNTERWEIGHT ASSY, PY60C00014F1

1шт.

a1

PY60C00011P1

COUNTERWEIGHT

1шт.

COUNTERWEIGHT INSTALLATION, PY60C00012F1

1шт.

b1

HS18C20070G1

BOLT

CAP

3шт.

b2

HY26Y21050G4

WASHER

3шт.

b3

YT60C01006D1

SHIM,3.2mm Thk

(3.2)

3шт.

b4

YT60C01006D2

SHIM,20.mm Thk

(2.0)

3шт.

b5

YT60C01006D3

SHIM,1.0mm Thk

(1.0)

3шт.

b6

YT60C01007P1

PLUG

3шт.

b7

LE60C01028P1

PLATE

2шт.

COUNTERWEIGHT ASSY, PY60C00013F1

1шт.

c1

PH60C01022P2

FOAM INSULATION

1шт.

c2

PH60C01023P1

FOAM INSULATION

1шт.

c4

PH60C01025P1

FOAM INSULATION

1шт.

c5

PH60C01026P1

RUBBER

2шт.

c6

PH60C01029P1

FOAM INSULATION

1шт.
