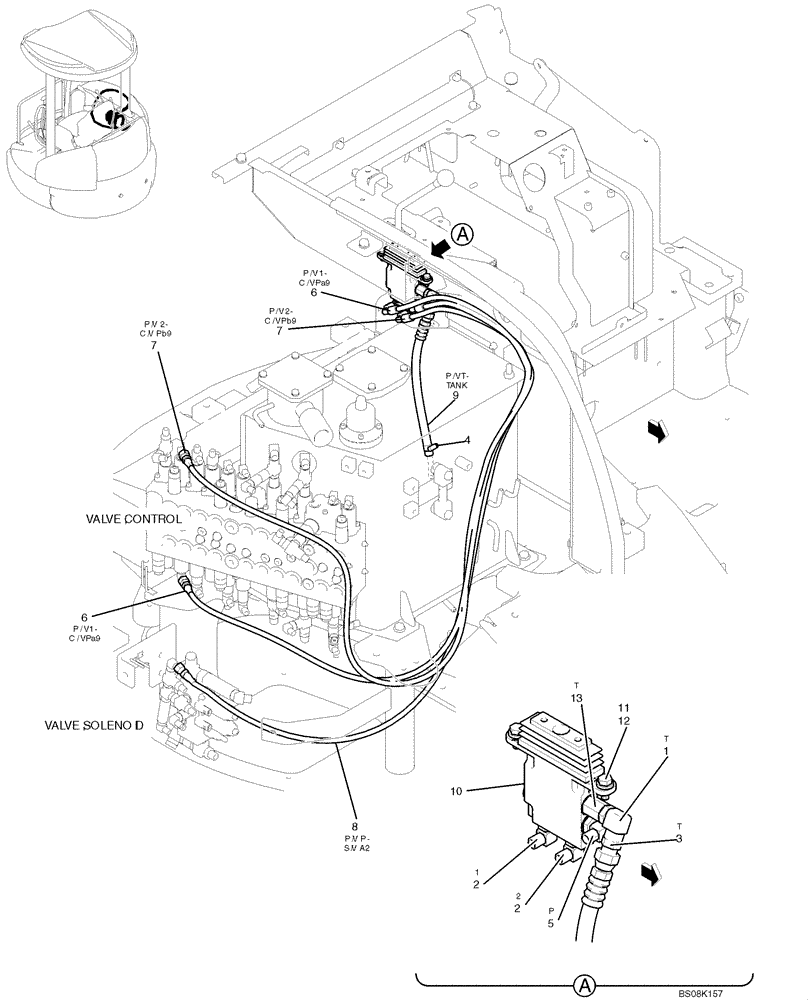

Запчасти Case CX50B (01-042) - CONTROL LINES, REMOTER (DOZER) (PY68H00016F1) (05) - SUPERSTRUCTURE

CONTROL LINES, REMOTE, PY68H00016F1

1шт.

1

2444Z2894

90 ELBOW

ELBOW

1шт.

2

HH35S04004G1

90 ELBOW

2шт.

3

HH25S06004G3

HYD CONNECTOR

1шт.

4

ZC16X01800

CLIP

1шт.

5

HH35S04004G2

90 ELBOW

(WITH FILTER)

1шт.

6

HX34L04195DX

HOSE,6.3mm ID x 1950mm L

1шт.

7

HX34L04230DX

HOSE

1шт.

8

HX34L04185DX

HOSE,6.3mm ID x 1850mm L

1шт.

9

PW68H01023DH

HOSE,9.5mm ID x 320mm L

1шт.

10

PB30V00002F2

PILOT VALVE

See Figure 07-045

1шт.

11

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

12

ZW16H08000

WASHER

2шт.

13

2444Z2525

HYD CONNECTOR

1шт.
