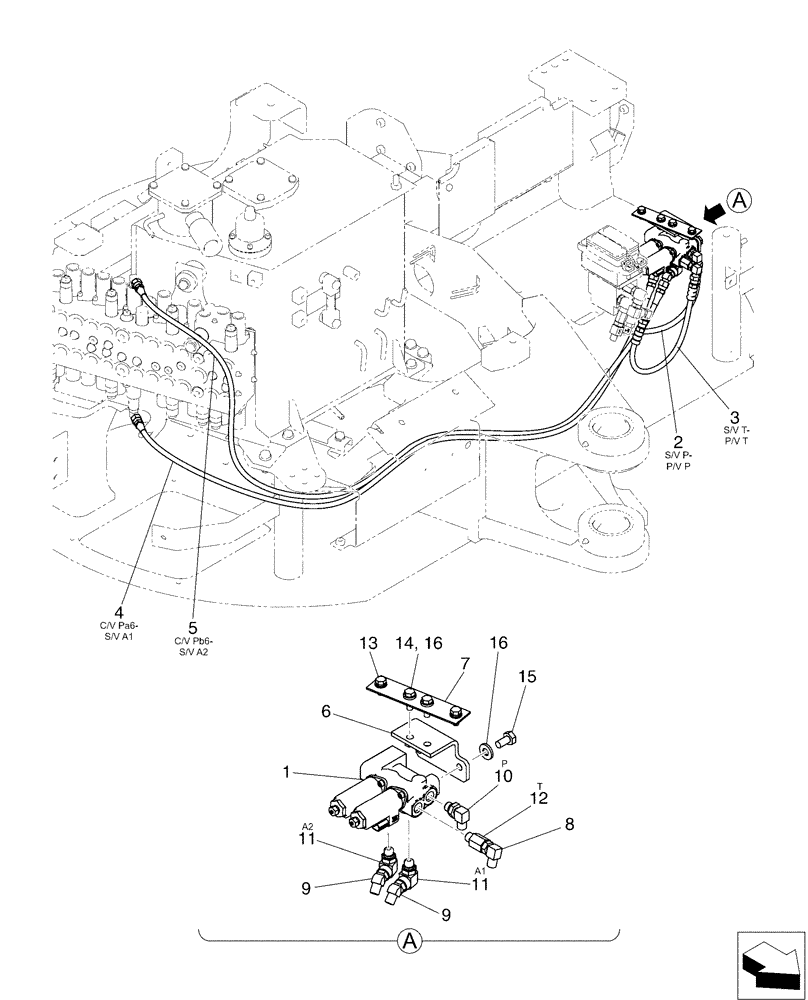

Запчасти Case CX50B (01-048[02]) - CONTROL LINES, VALVE, N & B PROPORTIONAL (35) - HYDRAULIC SYSTEMS

1

PW35V00002F1

SOLENOID VALVE

Assy (Used Nibbler Open/Close Proportional, Revolution Left/Right Proportional, Extra Proportional Left/Right)

1шт.

2

HX24L04032DX

HOSE ASSY.

1шт.

3

HX22L04042DX

HOSE

1шт.

4

HX24L04165DX

HOSE

1шт.

5

HX24L04200DX

HOSE

1шт.

6

PW64H01103P1

BRACKET, SUPPORTING

1шт.

7

PW64H01089P1

SUPPORT

1шт.

8

HH35S04004G1

90 ELBOW

1шт.

9

HH45S04004G1

45 ELBOW

2шт.

10

HH35S04004G2

90 ELBOW

1шт.

11

2444Z2894

90 ELBOW

2шт.

12

2444Z2525

HYD CONNECTOR

1шт.

13

ZM22C08020

BOLT

Sems

2шт.

14

ZS18C08025

SCREW,Hex, M8 x 25mm

Cap

2шт.

15

ZS18C08020

SCREW,Hex, M8 x 20mm

Cap

2шт.

16

ZW16H08000

WASHER

4шт.
