(02-023[02]) - CYLINDER INSTAL, DOZER

Запчасти Case CX50B (02-023[02]) - CYLINDER INSTAL, DOZER (35) - HYDRAULIC SYSTEMS

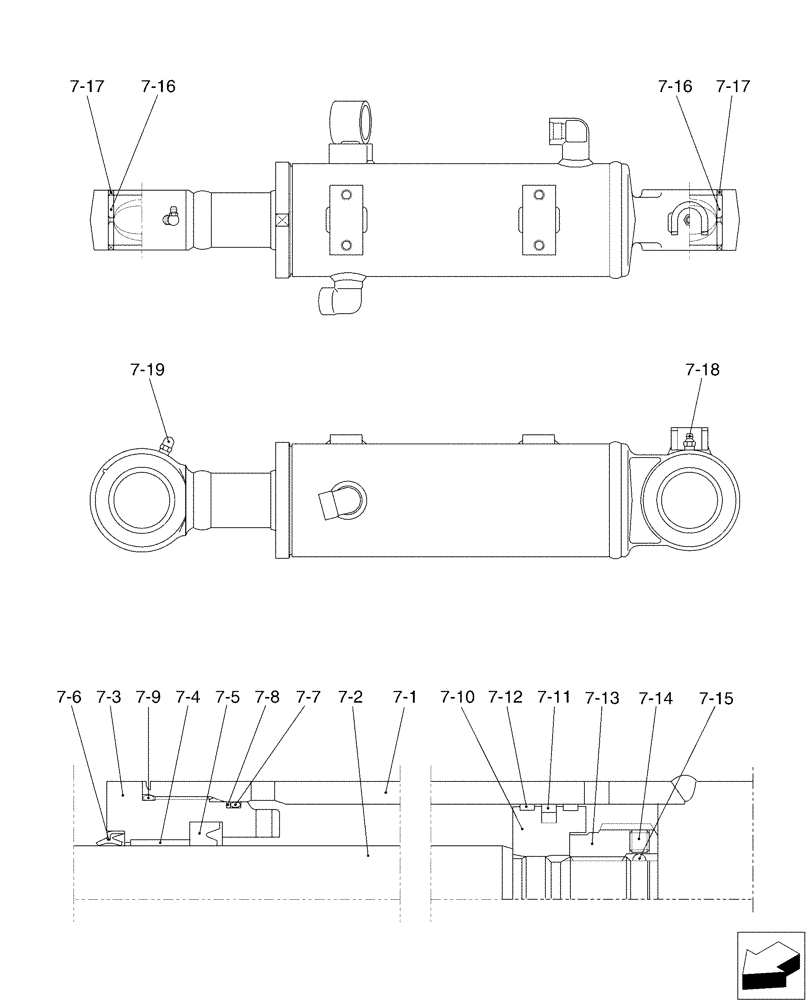

Схема запчастей Case CX50B - (02-023[02]) - CYLINDER INSTAL, DOZER (35) - HYDRAULIC SYSTEMS
7-17
7-12
7-13
7-6
7-5
7-18
7-1
7-7
7-4
7-16
7-16
7-9
7-14
7-15
7-10
7-17
7-11
7-8
7-19
7-2
7-3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

7-1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

7-2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

7-3

PY01V00036S003

CYLINDER HEAD

1шт.

7-4

PH01V00018S004

BUSHING

1шт.

7-5

2438U1116S5

RING

U

1шт.

7-6

YJ01V00009S006

RING

1шт.

7-7

ZD12G10500

O-RING,104.40mm ID x 110.60mm OD x 3.10mm

1шт.

7-8

PY01V00036S008

RING

Back Up

1шт.

7-9

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

7-10

PY01V00036S010

PISTON

1шт.

7-11

2438U716S23

SEAL

SEALRING

1шт.

7-12

PY01V00036S012

RING

2шт.

7-13

PY01V00036S013

NUT

1шт.

7-14

2438U986S18

SET SCREW

1шт.

7-15

2436U281S37

BALL

1шт.

7-16

PY01V00012S016

BUSHING

2шт.

7-17

2438U716S25

SEAL

Wiper

4шт.

7-18

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

7-19

ZG91U02000

LUBE NIPPLE

1шт.

PY01V00036R100

Consists Of Ref: 7-1 (1), 7-16 (1)

1шт.

PY01V00036R200

Consists Of Ref: 7-2 (1), 7-16 (1)

1шт.

PY01V00036R300

REPAIR KIT

Consists Of Ref: 7-5 (1), 7-6 (1), 7-7 (1), 7-8 (1), 7-9 (1), 7-11 (1), 7-12 (2)

1шт.
