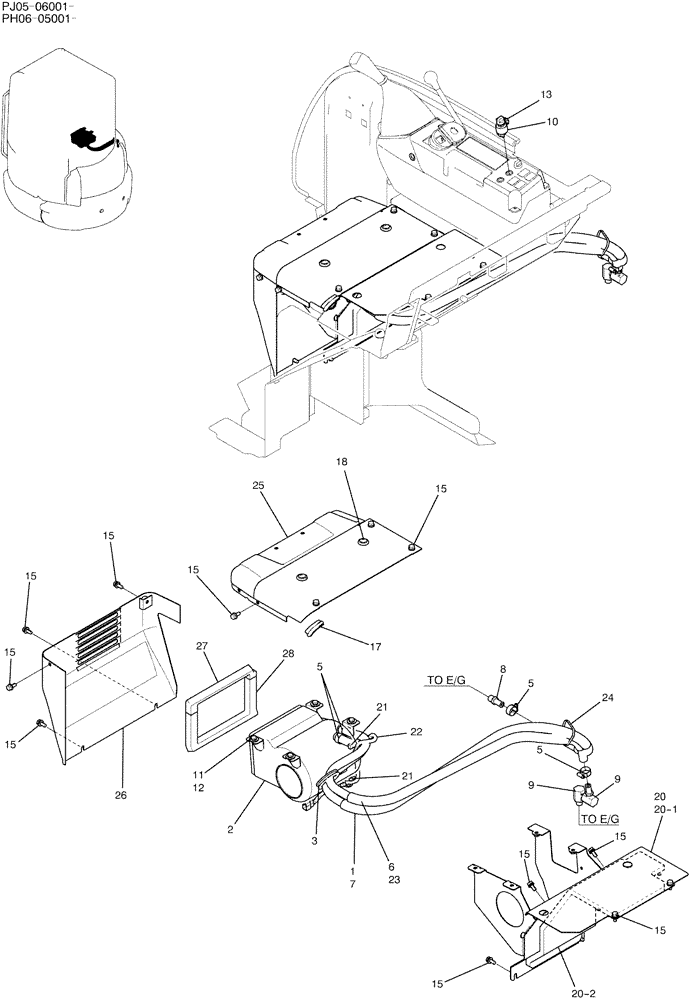

Запчасти Case CX50B (01-076) - HOSE ASSY, HEATER (50) - CAB CLIMATE CONTROL

PH21M00011F1

Heater

1шт.

1

R18T0026D3

HOSE ASSY.

1шт.

2

PM21M00005F1

HEATER ASSY.

Components are NSS, Includes Blower Motor

1шт.

3

PW03M01461P1

GROMMET

1шт.

5

ZC16X02000

CLIP

4шт.

6

R18T0026D55

HOSE,12mm ID x 1350mm L

1шт.

7

YN20M01046DV

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 950.00mm

1шт.

8

2444Z1630

FITTING

2шт.

9

PM21M01018P1

ELBOW

2шт.

10

PY50S00003P2

SWITCH

1шт.

11

PV01P01007P1

WASHER

4шт.

12

ZM11C08016

BOLT

Sems

4шт.

13

PW17M01019P1

LABEL

Heater Fan Switch (Off/L/H)

1шт.

15

PA03M01093D2

BOLT

Sems

14шт.

17

PM22C01013D8

FOAM

1шт.

18

2420R429D4

GROMMET

2шт.

20

PW21M01027P1

RUBBER STRIP

1шт.

21

YN03E01001D5

CLIP

2шт.

22

PW13E01068P1

HARNESS

1шт.

23

YN20M01046D3

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 800.00mm

1шт.

24

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

1шт.

25

PW03M01853P1

COVER

1шт.

26

PM10M01293P1

COVER

1шт.

27

PW21M01026P1

RUBBER STRIP

1шт.

28

PW21M01027P1

RUBBER STRIP

1шт.
