(02-009) - SHOE ASSY, P/N PY60D00007F1

Запчасти Case CX50B (02-009) - SHOE ASSY, P/N PY60D00007F1 (48) - TRACKS & TRACK SUSPENSION

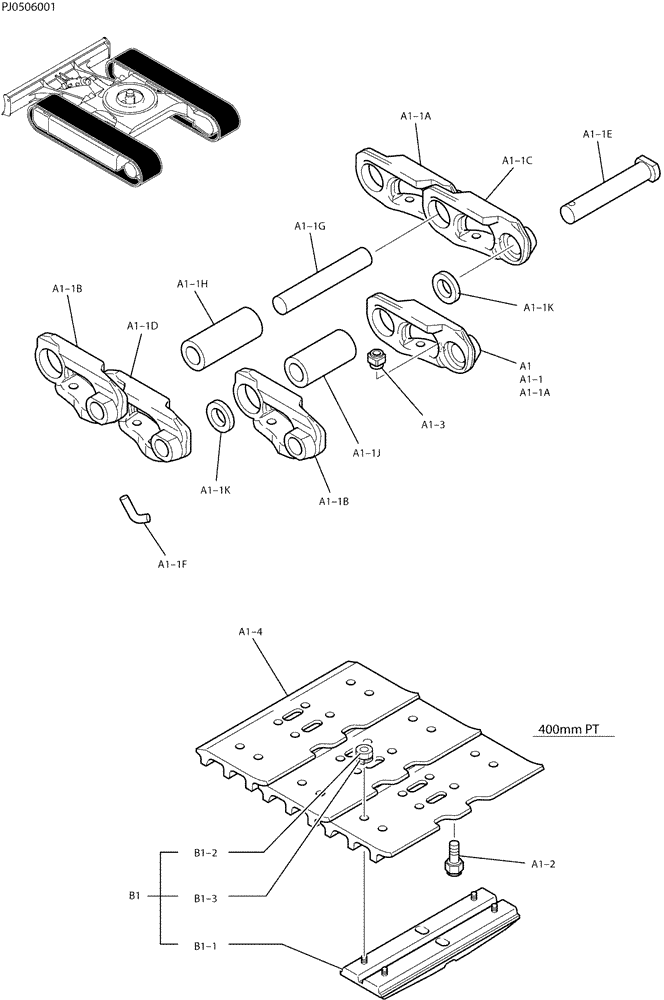

Схема запчастей Case CX50B - (02-009) - SHOE ASSY, P/N PY60D00007F1 (48) - TRACKS & TRACK SUSPENSION
a1-1j
a1-1a
a1-1b
a1-1g
a1-1f
b1
a1-1k
a1-1b
a1-1c
a1-1e
a1-1k
b1-3
b1-1
a1-1d
b1-2
a1
a1-1a
a1-4
a1-1h
a1-3
a1-1
a1-2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY60D00007F1

SHOE ASSY

1шт.

a1

PY60D00003F1

SHOE (ASSY)

1шт.

a1-1

PY62D00002F1

TRACK LINK

ASSY

1шт.

a1-1a

PY62D00003P1

TRACK LINK

37шт.

a1-1b

PY62D00004P1

TRACK LINK

37шт.

a1-1c

PY62D01008P1

LINK

1шт.

a1-1d

PY62D01009P1

LINK

1шт.

a1-1e

PY62D01010P1

PIN,22.16mm OD x 120mm L

1шт.

a1-1f

2419T6404

PIN,6mm OD

1шт.

a1-1g

PY62D01011P1

PIN,22.3mm OD x 120.2mm L

37шт.

a1-1h

PY62D01012P1

BUSHING,22.5mm ID x 35mm OD x 73.5mm L

37шт.

a1-1j

PY62D01013P1

BUSHING,22.5mm ID x 35mm OD x 63mm L

1шт.

a1-1k

PY62D01014P1

COLLAR

2шт.

a1-2

PH60D01001P1

BOLT

152шт.

a1-3

2420Z1345

NUT

152шт.

a1-4

PY60D00002P1

SHOE

38шт.

PH60D00004F2

SHOE (ASSY)

(400W)

1шт.

b1

PH62D00004F1

SHOE,400mm W

ASSY, RUBBER-PAD

44шт.

b1-1

PH62D00005P1

SHOE

RUBBER-PAD

1шт.

b1-2

ZN45C12022

NUT

4шт.

b1-3

ZW26X12000

LOCK WASHER

4шт.
