(06-001) - NAME PLATE INSTAL, P/N PW22T00083F1

Запчасти Case CX50B (06-001) - NAME PLATE INSTAL, P/N PW22T00083F1 (90) - PLATFORM, CAB, BODYWORK AND DECALS

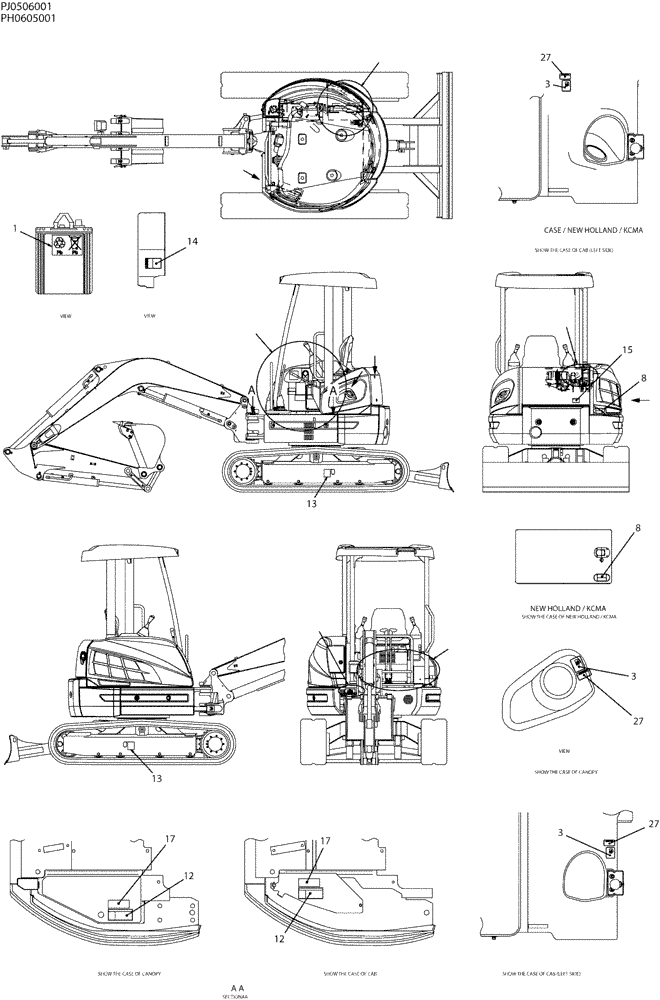

Схема запчастей Case CX50B - (06-001) - NAME PLATE INSTAL, P/N PW22T00083F1 (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
14
17
12
17
15
27
3
3
12
27
8
13
1
13
3
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW22T00083F1

LABEL

NAME PLATE INSTAL

1шт.

1

2432T6179

CAUTION DECAL

Recycle

1шт.

3

YN20T01213P1

LABEL

Diesel Fuel

1шт.

8

PE20T01014P1

LABEL

Danger, Keep Clear of Swing Area

1шт.

12

YN20T01338P1

LABEL

Warning, Electric Hazard MAy Cause Injury

1шт.

13

2432T6110

LABEL

Warning, Extreme High Pressure

2шт.

14

YN20T01220P1

LABEL

Caution, Engine May Be Hot

1шт.

15

YN20T01012P1

CAUTION DECAL

Caution, Rotating Engine Fan

1шт.

17

PY20T01069P1

LABEL

Danger, Explosive Gases

1шт.

27

PW20T01090P1

LABEL

Caution, After Refueling Cap and Key Cover Should Be Shut

1шт.
