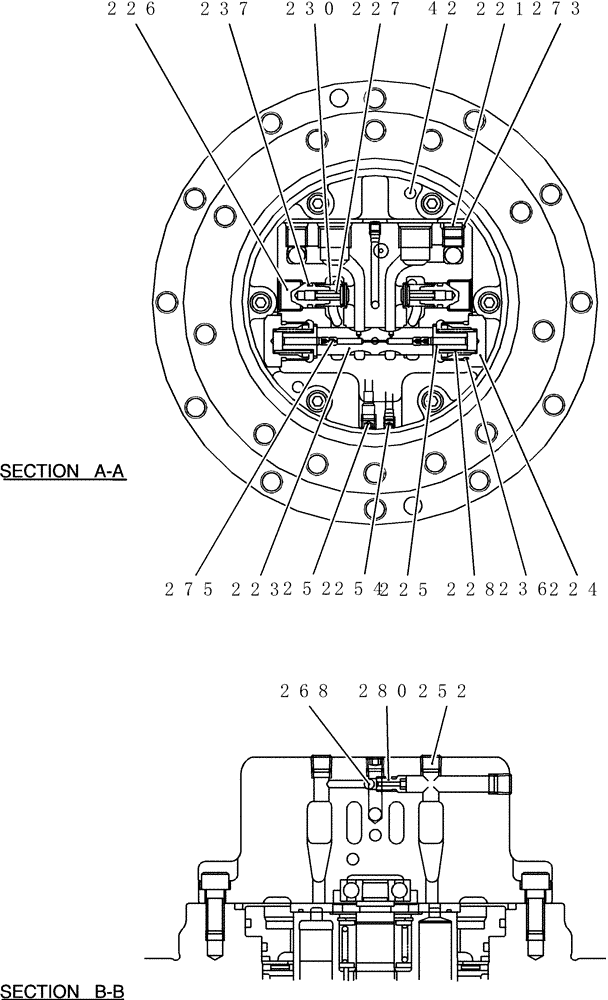

Запчасти Case CX50B (HC370[2]) - MOTOR ASSY, HYD (PROPELLING) (35) - HYDRAULIC SYSTEMS

PH15V00012F1

HYDRAULIC MOTOR

Assy (propelling)

1шт.

1

PH15V00012S001

HUB

1шт.

2

PH15V00012S002

SPINDLE

1шт.

3

PH15V00012S003

CARRIER

1шт.

4

PH15V00012S004

GEAR

Sun

1шт.

6

PH15V00012S006

GEAR

Sun

1шт.

9

PX15V00025S009

WASHER

Thrust

2шт.

11

PH15V00012S011

WASHER

Thrust

4шт.

12

PX15V00025S012

WASHER

Thrust

7шт.

13

PH15V00012S013

COVER

1шт.

14

PH15V00012S014

COUPLING

1шт.

22

PH15V00012S022

NUT

1шт.

24

PH15V00012S024

BALL BEARING

2шт.

31

NSS

NOT SOLD SEPARAT

Seal, Floating

2шт.

33

YT15V00008S033

PLUG

1шт.

35

ZD11G19500

O-RING,194.30mm ID x 205.70mm OD x 5.70mm

1шт.

37

ZD12P01400

O-RING

3шт.

39

YR15V00002S121

PLUG

2шт.

40

PH15V00012S040

CAPSCREW

Cap

7шт.

41

2441U815S26

BALL

1шт.

43

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

44

PH15V00009S030

O-RING

1шт.

45

PH15V00012S045

RING

1шт.

47

PX15V00025S047

SET SCREW

2шт.

102

PH15V00012S102

SHAFT

1шт.

103

PH15V00012S103

PLATE

1шт.

104

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

105

NSS

NOT SOLD SEPARAT

Piston

9шт.

106

NSS

NOT SOLD SEPARAT

Shoe

9шт.

107

2441U831S107

RETAINING PLATE

Retainer

1шт.

108

2441U831S108

BALL

1шт.

109

PH15V00012S109

PLATE

1шт.

110

2441U831S110

WASHER

2шт.

112

PH15V00012S112

PISTON

1шт.

113

PH15V00009S113

SPRING

8шт.

114

YJ15V00002S114

SPRING

1шт.

115

PH15V00012S115

PLATE

2шт.

116

YJ15V00002S116

PLATE

3шт.

132

2441U831S132

OIL SEAL

1шт.

135

PY15V00005S135

O-RING

1шт.

139

PH15V00009S139

O-RING

1шт.

145

2441U831S145

RING

1шт.

149

YJ15V00002S149

BALL BEARING

1шт.

150

2441U831S150

BALL BEARING

1шт.

151

PH15V00009S151

ROLLER

3шт.

161

NSS

NOT SOLD SEPARAT

Piston

1шт.

162

NSS

NOT SOLD SEPARAT

Shoe

1шт.

163

PH15V00012S163

SEAL

1шт.

167

PY15V00006S167

SPOOL

pivot

2шт.

177

PH15V00009S177

PIN

2шт.

190

PH15V00009S190

SPRING

1шт.

201

NSS

NOT SOLD SEPARAT

Flange

1шт.

221

2441U995S192

PLUG

1шт.

241

2441U815S141

PIN

2шт.

243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

252

YX15V00003S146

PLUG

1шт.

254

PY15V00006S154

PLUG

4шт.

263

NSS

NOT SOLD SEPARAT

Spool

1шт.

264

NSS

NOT SOLD SEPARAT

Stopper

1шт.

266

PH15V00009S401

SPRING

1шт.

273

ZD12P01100

O-RING

1шт.

275

PH15V00009S275

ORIFICE

1шт.

276

PH15V00009S276

ORIFICE

1шт.

279

YN15V00027S379

FILTER

1шт.

299

2441U829S199

PLATE

Name

1шт.

42

PY15V00006S142

PIN

2шт.

221

2441U995S192

PLUG

1шт.

223

NSS

NOT SOLD SEPARAT

Spool

1шт.

224

PH15V00009S224

PLUG

2шт.

225

PH15V00009S225

SEAT

Stopper

2шт.

226

2441U831S126

PLUG

2шт.

227

2441U831S127

VALVE

Check

2шт.

228

PH15V00009S228

SPRING

2шт.

230

2441U831S130

SPRING

2шт.

236

ZD12P02200

O-RING

2шт.

237

ZD12P01200

O-RING

2шт.

252

YX15V00003S146

PLUG

3шт.

254

PY15V00006S154

PLUG

2шт.

268

PH15V00009S268

BALL

1шт.

273

ZD12P01100

O-RING

1шт.

275

PH15V00009S275

ORIFICE

4шт.

280

PH15V00009S280

PLUG

1шт.

5

PH15V00012S005

GEAR

3шт.

7

PH15V00012S007

GEAR

4шт.

27

PX15V00025S027

NEEDLE BEARING

3шт.

28

PH15V00012S028

NEEDLE BEARING

4шт.

29

PX15V00025S029

RING

3шт.

30

PH15V00012S030

RING

4шт.

PW15V00018R330

REPAIR KIT

Consists Of Ref. 31x2

1шт.

PH15V00012R310

REPAIR KIT

Consists Of Ref. 104x1, 105x9, 106x9

1шт.

PH15V00012R320

REPAIR KIT

Consists Of Ref. 161x1, 162x1, 163x1

1шт.

PH15V00012R330

VALVE

Consists Of Ref. 201x1, 221x2, 223x1, 224x2, 225x2, 226x2, 227x2, 228x2, 230x2, 236x2, 237x2, 252x4, 254x6, 263x1, 264x1, 266x1, 268x1, 273x2, 275x5, 276x1, 279x1, 280x1, 299x1

1шт.

PH15V00009R340

REPAIR KIT

Consists Of Ref. 201x1, 223x1

1шт.

PH15V00009R410

REPAIR KIT

Consists Of Ref. 263x1, 264x1

1шт.

PH15V00012R360

REPAIR KIT

Consists Of Ref. 31x2, 35x1, 37x3, 43x2, 44x1, 132x1, 135x1, 139x1, 236x2, 237x2, 273x2

1шт.
