(HC751-72) - CYLINDER ASSEMBLY, D0ZER

Запчасти Case CX50B (HC751-72) - CYLINDER ASSEMBLY, D0ZER (35) - HYDRAULIC SYSTEMS

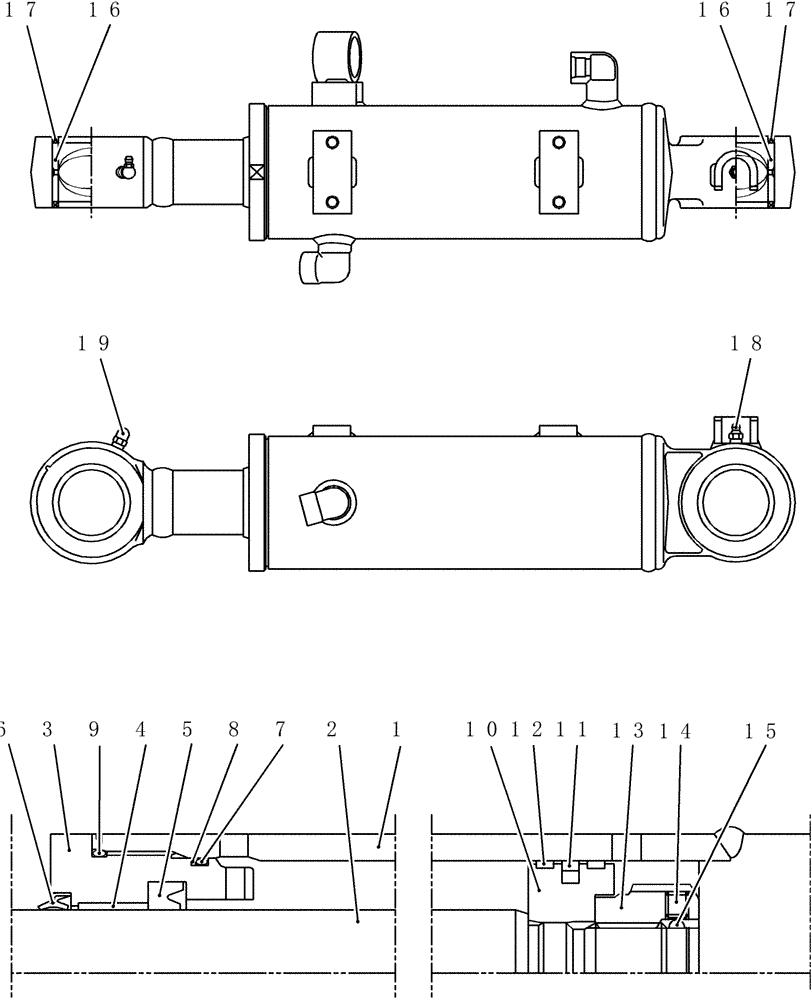

Схема запчастей Case CX50B - (HC751-72) - CYLINDER ASSEMBLY, D0ZER (35) - HYDRAULIC SYSTEMS
8
11
17
7
2
3
15
17
13
5
9
1
16
4
6
16
12
18
14
10
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY01V00036F1

CYLINDER

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

3

PY01V00036S003

CYLINDER HEAD

1шт.

4

PH01V00018S004

BUSHING

1шт.

5

2438U1116S5

RING

1шт.

6

YJ01V00008S006

WIPER

1шт.

7

ZD12G10500

O-RING,104.40mm ID x 110.60mm OD x 3.10mm

1шт.

8

PY01V00036S008

RING

Back Up

1шт.

9

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

10

PY01V00036S010

PISTON

1шт.

11

2438U716S23

SEAL

SEALRING

1шт.

12

PY01V00036S012

RING

Ring

2шт.

13

PY01V00036S013

NUT

1шт.

14

2438U986S18

SET SCREW

Set

1шт.

15

2436U281S37

BALL

1шт.

16

PY01V00012S016

BUSHING

2шт.

17

2438U716S25

SEAL

Ring,Wiper

4шт.

18

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.

19

ZG91U02000

LUBE NIPPLE

Grease

1шт.

PY01V00036R100

Consists Of Ref. 1x1, 16x1

1шт.

PY01V00036R200

Consists Of Ref. 2x1, 16x1

1шт.

PY01V00036R300

REPAIR KIT

All(rod+piston) consists of Ref. 5x1, 6x1, 7x1, 8x1, 9x1, 11x1, 12x2

1шт.
