/ / / / / / / / (016-01[1]) - COUNTERWEIGHT ASSY
Запчасти Case CX50B (016-01[1]) - COUNTERWEIGHT ASSY (39) - FRAMES AND BALLASTING

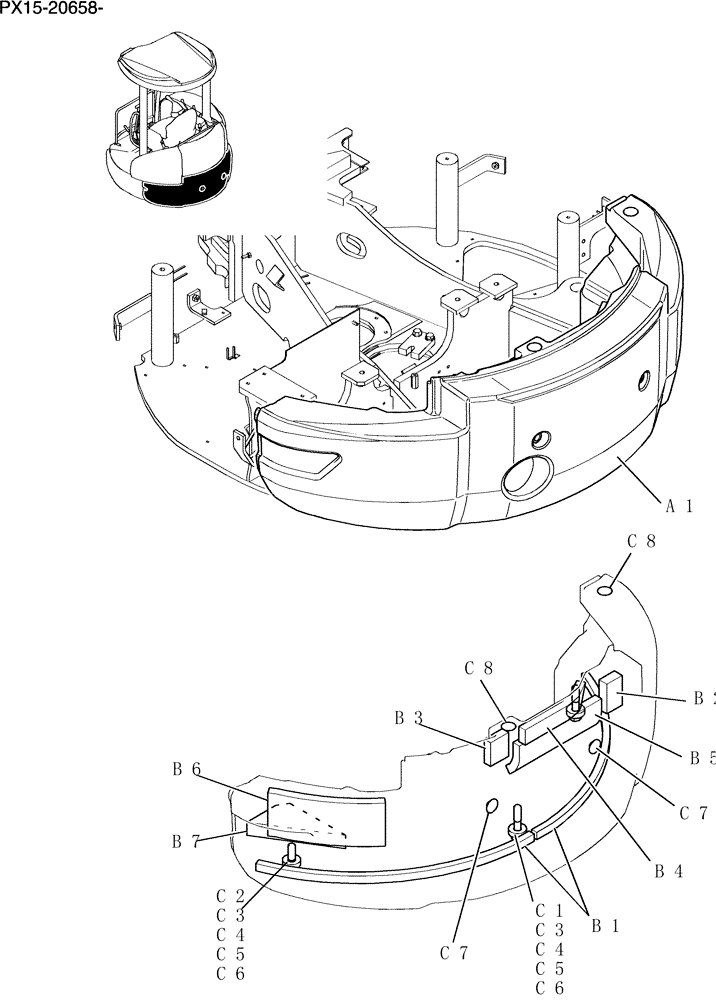

![Схема запчастей Case CX50B - (016-01[1]) - COUNTERWEIGHT ASSY (39) - FRAMES AND BALLASTING](https://www.partsell.ru/storage/images/casece/603032.png)
b6
c5
a1
c3
c1
b2
c5
c4
c6
c4
c8
c8
b4
c7
c7
c2
b7
b1
b5
b3
c3
c6
PY60C00014F1
1шт.
a1
PY60C00011P1
COUNTERWEIGHT
1шт.
PY60C00012F1
Instal
1шт.
b1
HS18C20070G1
BOLT
Cap
3шт.
b2
HY26Y21050G4
WASHER
3шт.
b3
YT60C01006D1
SHIM,3.2mm Thk
(3.2)
3шт.
b4
YT60C01006D2
SHIM,20.mm Thk
(2.0)
3шт.
b5
YT60C01006D3
SHIM,1.0mm Thk
(1.0)
3шт.
b6
YT60C01007P1
PLUG
3шт.
b7
LE60C01028P1
PLATE
2шт.
PY60C00013F1
1шт.
c1
PH60C01022P2
FOAM INSULATION
1шт.
c2
PH60C01023P1
FOAM INSULATION
1шт.
c4
PH60C01025P1
FOAM INSULATION
1шт.
c5
PH60C01026P1
RUBBER
2шт.
c6
PH60C01029P1
FOAM INSULATION
1шт.
