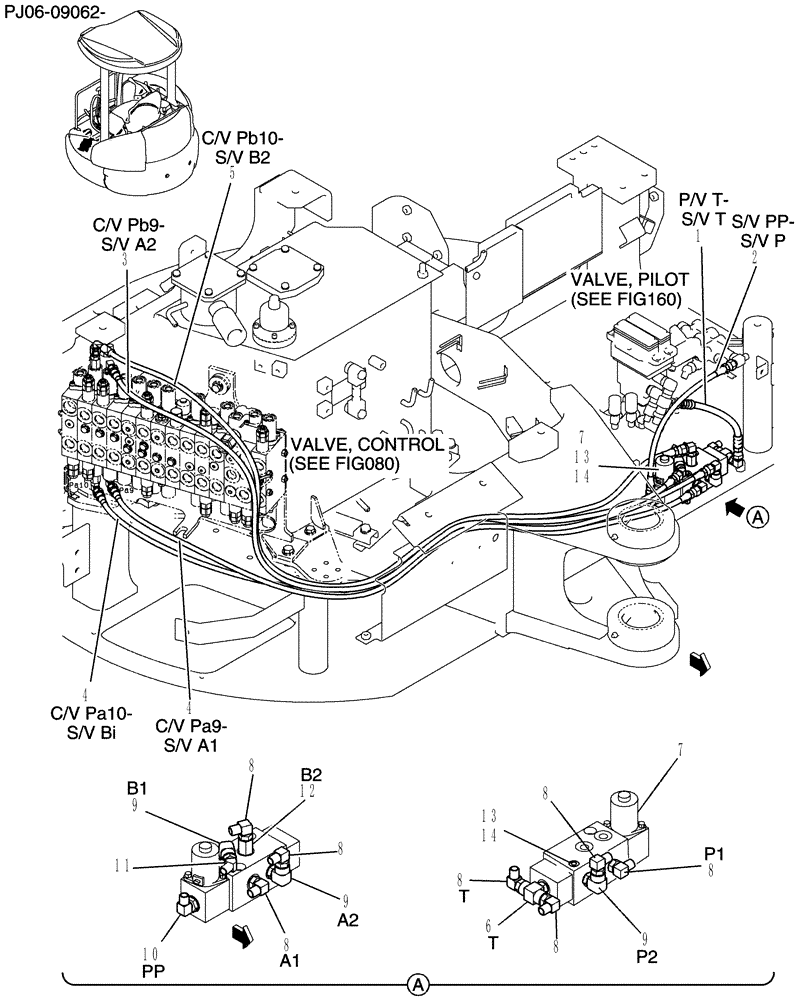

Запчасти Case CX50B (161-72[1]) - CONTROL LINES, REMOTE PROPORTIONAL, ANGLE DOZER (86) - DOZER

PY64H00070F1

Control, Valve

1шт.

1

HX22L04028DX

HOSE,6.3mm ID x 280mm L

1шт.

2

HX24L04038DX

HOSE

1шт.

3

HX24L04200DX

HOSE

1шт.

4

HX24L04165DX

HOSE

2шт.

5

HX34L04200DX

HOSE

1шт.

6

2444Z4239

TEE

1шт.

7

PE35V00001F2

SOLENOID VALVE

Assy

1шт.

See (C.P.M)

1шт.

8

HH35S04004G1

90 ELBOW

7шт.

9

2444Z2894

90 ELBOW

Elbow

3шт.

10

HH35S04004G2

90 ELBOW

(with Filter)

1шт.

11

HH45S04004G1

45 ELBOW

1шт.

12

2444Z2525

HYD CONNECTOR

2шт.

13

ZW26K10000

LOCK WASHER

Lock

2шт.

14

ZS28C10065

SCREW,Hex Socket Head, M10 x 65mm

Cap

2шт.
