(158-72[1]) - CONTROL LINES, REMOTE NIBBLER & BREAKER

Запчасти Case CX50B (158-72[1]) - CONTROL LINES, REMOTE NIBBLER & BREAKER (88) - ACCESSORIES

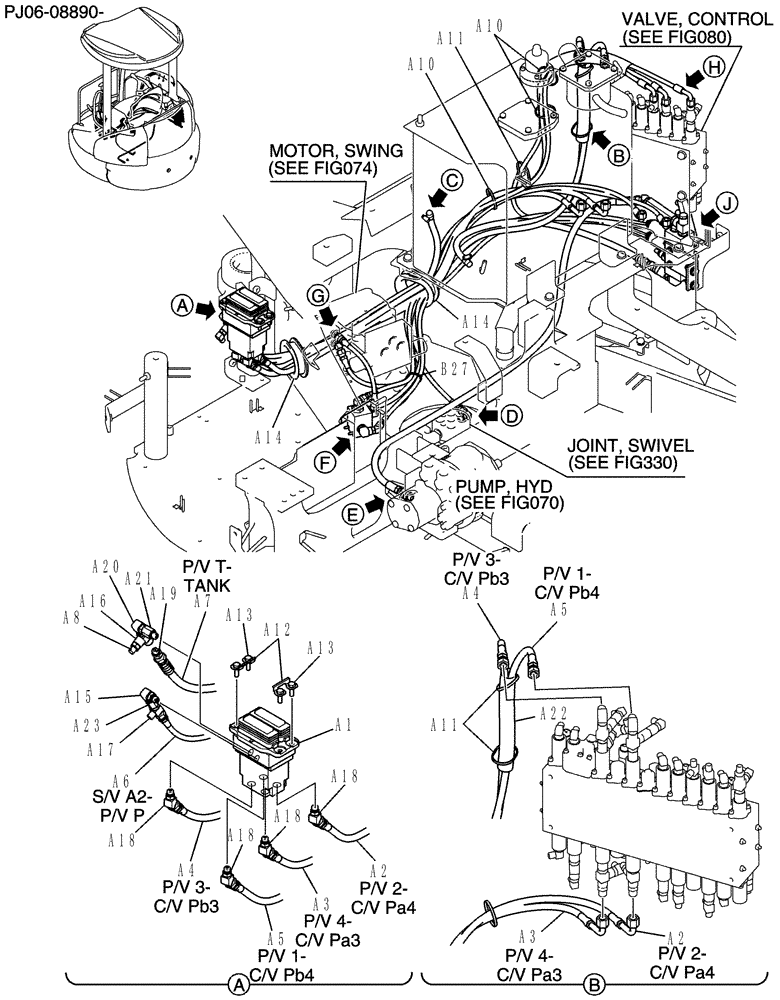

Схема запчастей Case CX50B - (158-72[1]) - CONTROL LINES, REMOTE NIBBLER & BREAKER (88) - ACCESSORIES
a3
a10
a23
a16
a18
a3
a13
a5
b27
a18
a8
a18
a11
a10
a2
a5
a12
a4
a18
a11
a4
a15
a14
a7
a13
a1
a21
a6
a2
a20
a19
a14
a22
a17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY62H00011F1

Control, Propel

1шт.

a1

PM30V00019F7

PILOT VALVE

Pilot

1шт.

See (C.P.M)

1шт.

a2

HX34L06145DX

HYDRAULIC HOSE

Hose

1шт.

a3

HX34L06140DX

HOSE

1шт.

a4

HX24L06200DX

HOSE

1шт.

a5

HX24L06190DX

HOSE

1шт.

a6

HX24L04165DX

HOSE

1шт.

a7

PW68H01023DG

HOSE,9.5mm ID x 1000mm L

1шт.

a8

HH25S04004G1

HYD CONNECTOR

1шт.

a10

PY01P01043D8

CABLE TIE,102mm L

3шт.

a11

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

3шт.

a12

PW62H01003P1

PLATE

2шт.

a13

ZS18C08025

SCREW,Hex, M8 x 25mm

Cap

4шт.

a14

PH62H01001P1

GROMMET

2шт.

a15

PH62H01003P1

ELBOW

Elbow (with Filter)

1шт.

a16

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a17

HH55L04004G1

TEE

1шт.

a18

HH45S06004G1

45 ELBOW

4шт.

a19

HH25S06004G3

HYD CONNECTOR

1шт.

a20

2444Z2894

90 ELBOW

Elbow

1шт.

a21

2444Z2525

HYD CONNECTOR

1шт.

a22

2414Z199D30

PROTECTIVE SLEEVE

Hose

1шт.

a23

PH62H01004P1

HYD CONNECTOR

1шт.

PY64H00049F1

Control, Valve

1шт.

b27

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.
