(124-17[1]) - GRIP ASSY PROPORTIONAL

Запчасти Case CX50B (124-17[1]) - GRIP ASSY PROPORTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

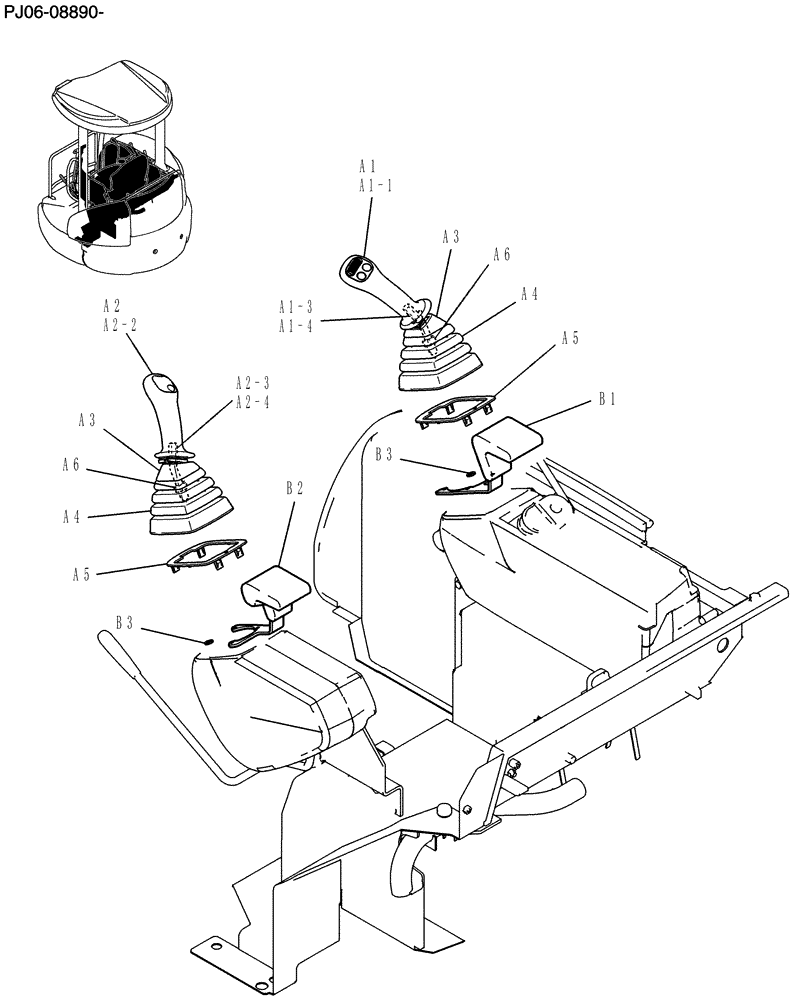

Схема запчастей Case CX50B - (124-17[1]) - GRIP ASSY PROPORTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
a1-1
a4
a2-4
a1
b2
a2-3
a5
b3
a1-3
a5
a1-4
a3
b1
a4
a2
a6
a6
a3
a2-2
b3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW03M01954F1

GRIP

1шт.

a1

PW03M01955F1

GRIP

Assembly, Rotary and Nibbler & Breaker (RH - With 1 Button and Proportional)

1шт.

a1-1

PW03M01958F1

HANDLE

Assy

1шт.

a1-3

PW03M01945P1

LEVER

1шт.

a1-4

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

Spring

1шт.

a2

PW03M01955F3

GRIP

Assembly, Nibbler & Breaker (LH - With 1 Button)

1шт.

a2-2

PW03M01960F1

HANDLE

1шт.

a2-3

PW03M01945P1

LEVER

1шт.

a2-4

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

Spring

1шт.

a2-5

PW03M01960F1

HANDLE

Assy

1шт.

a3

LF03M01004P1

BOOT

2шт.

a4

LF03M01008P1

BELLOWS

Boot

2шт.

a5

YT03M01051P2

PLATE

2шт.

a6

ZN18C14011

NUT

2шт.

PW03M01718F1

SUPPORT

1шт.

b1

PW03M01745P1

SUPPORT

1шт.

b2

PW03M01746P1

SUPPORT

1шт.

b3

PV03M01135P1

SPACER

2шт.
