(744-01[2]) - CAB ASSEMBLY COOLER

Запчасти Case CX50B (744-01[2]) - CAB ASSEMBLY COOLER (90) - PLATFORM, CAB, BODYWORK AND DECALS

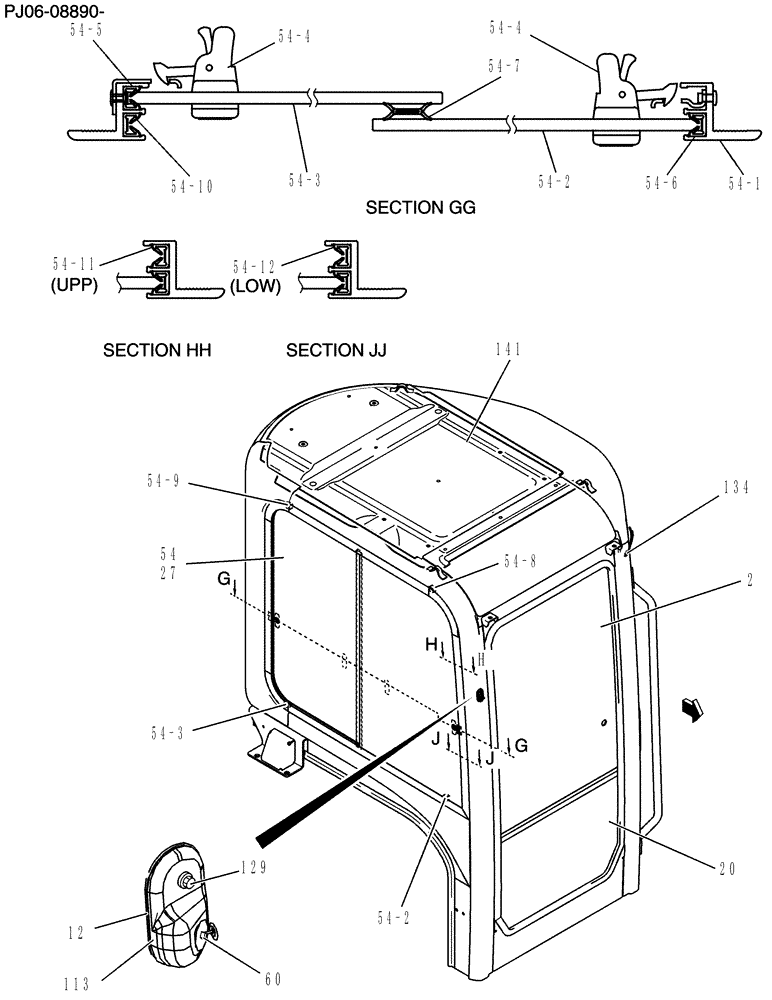

Схема запчастей Case CX50B - (744-01[2]) - CAB ASSEMBLY COOLER (90) - PLATFORM, CAB, BODYWORK AND DECALS
60
54-10
54-5
27
20
54-6
2
54-1
h
54-9
54-4
113
54-11
54-8
134
141
12
129
54-7
54-4
54-2
54-2
54-3
54-3
54-12
54
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

PW50C00002F1

WINDOW

Assembly - Inc. Frame (See FIg No.190-01-1)

1шт.

12

PM02C01475P1

RUBBER

1шт.

20

PW02C01117P1

GLASS

1шт.

27

PM02C01172D3

SEAL,7mm W x 4.8mm H x 4000mm L

1шт.

54

PW02C01114F1

GLASS

Sash Assy

1шт.

54-1

PW02C01114S001

FRAME ASSY

1шт.

54-2

PW02C01224P1

GLASS

1шт.

54-3

PW02C01225P1

GLASS

1шт.

54-4

PW02C01114S004

LOCK ASSY

2шт.

54-5

PW02C01114S005

SEAL

1шт.

54-6

PW02C01114S006

SEAL

1шт.

54-7

PW02C01114S007

SEAL

1шт.

54-8

PW02C01114S008

STOP

2шт.

54-9

PW02C01114S009

STOP

2шт.

54-10

PW02C01114S010

SEAL

1шт.

54-11

PW02C01114S011

SEAL

1шт.

54-12

PW02C01114S012

SEAL

1шт.

60

PM02C01480P1

NOZZLE

1шт.

113

PM02C01474P1

BASE PLATE

1шт.

129

ZM46C05020

BOLT (STEP)

Sems

1шт.

134

PW02C01162P1

GROMMET

1шт.

141

PW02C01295P2

FOAM INSULATION

1шт.
