(HC009) - VALVE ASSEMBLY, CONTROL (SUPPLY, CONNECTING)

Запчасти Case CX50B (HC009) - VALVE ASSEMBLY, CONTROL (SUPPLY, CONNECTING) (35) - HYDRAULIC SYSTEMS

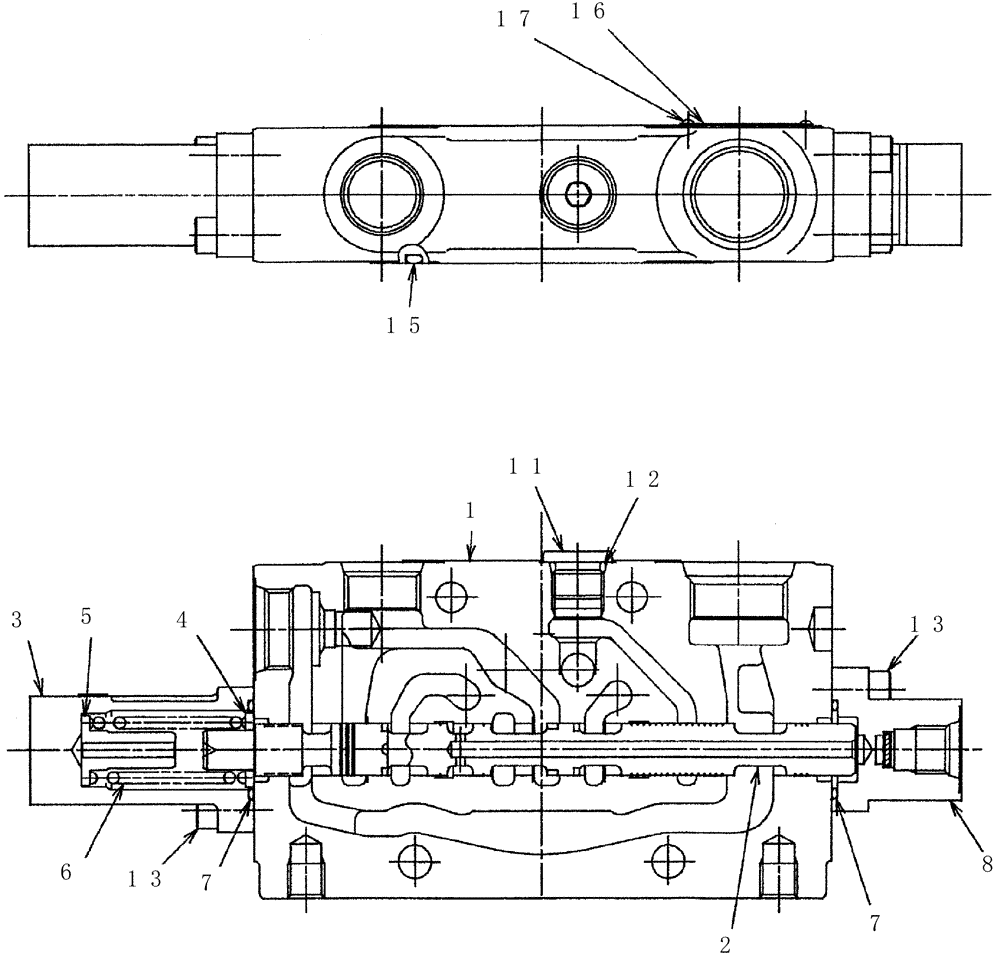

Схема запчастей Case CX50B - (HC009) - VALVE ASSEMBLY, CONTROL (SUPPLY, CONNECTING) (35) - HYDRAULIC SYSTEMS
6
13
2
11
16
4
15
7
3
17
5
1
8
12
13
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH30V00064F1

VALVE

Assy, Control (supply, Connecting)

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

PH30V00061S014

CAP

1шт.

4

2436R919S10

SEAT

Spring

1шт.

5

PH30V00053S005

VALVE SEAT

Seat

1шт.

6

PH30V00064S006

SPRING

1шт.

7

2436R668S3

O-RING

2шт.

8

PH30V00064S008

CAP

1шт.

11

PH30V00055S007

PLUG

1шт.

12

2436U1192S19

O-RING

1шт.

13

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

Cap

4шт.

15

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

16

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

17

NSS

NOT SOLD SEPARAT

Screw, Drive

2шт.
