(03-009) - SHOE ASSEMBLY P/N PY60D00003F1

Запчасти Case CX50B (03-009) - SHOE ASSEMBLY P/N PY60D00003F1 (04) - UNDERCARRIAGE

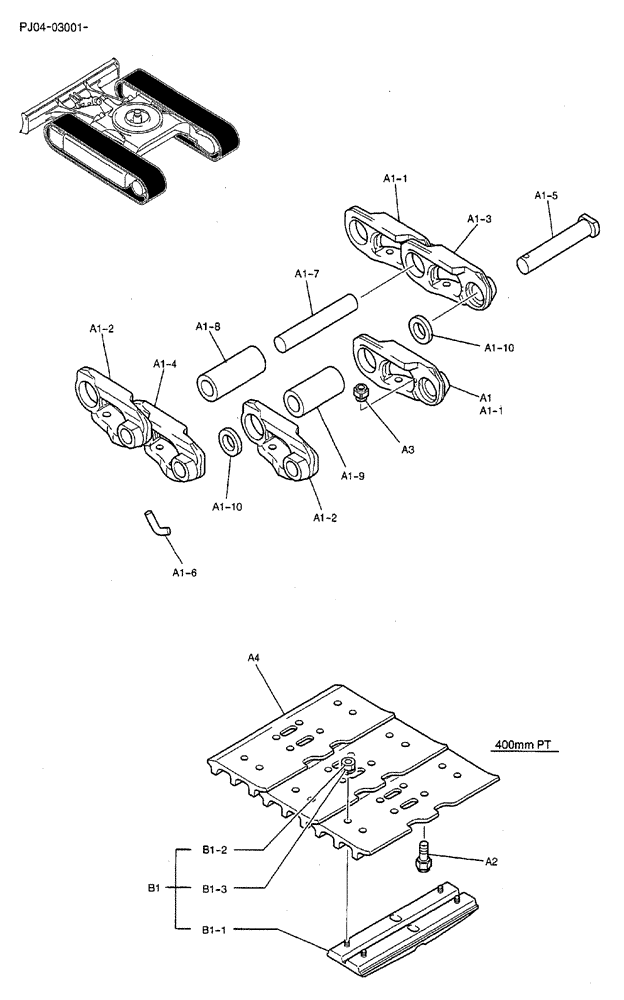

Схема запчастей Case CX50B - (03-009) - SHOE ASSEMBLY P/N PY60D00003F1 (04) - UNDERCARRIAGE
b1-3
a1-5
a4
b1-1
a1-8
a1-2
a1-10
b1-2
a1-3
b1
a2
a1-7
a1-1
a1-10
a1-6
a1-9
a1
a1-1
a1-2
a1-4
a3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY60D00003F1

SHOE (ASSY)

1шт.

a1

PY62D00002F1

TRACK LINK

ASSY

1шт.

a1-1

PY62D00003P1

TRACK LINK

37шт.

a1-2

PY62D00004P1

TRACK LINK

37шт.

a1-3

PY62D01008P1

LINK

1шт.

a1-4

PY62D01009P1

LINK

1шт.

a1-5

PY62D01010P1

PIN,22.16mm OD x 120mm L

1шт.

a1-6

2419T6404

PIN,6mm OD

1шт.

a1-7

PY62D01011P1

PIN,22.3mm OD x 120.2mm L

37шт.

a1-8

PY62D01012P1

BUSHING,22.5mm ID x 35mm OD x 73.5mm L

37шт.

a1-9

PY62D01013P1

BUSHING,22.5mm ID x 35mm OD x 63mm L

1шт.

a1-10

PY62D01014P1

COLLAR

2шт.

a2

PH60D01001P1

BOLT

152шт.

a3

2420Z1345

NUT

152шт.

a4

PY60D00006P1

SHOE

38шт.

PH60D00004F2

SHOE (ASSY)

(400W)

1шт.

b1

PH62D00004F1

SHOE,400mm W

ASSY, RUBBER-PAD

44шт.

b1-1

PH62D00005P1

SHOE

RUBBER-PAD

1шт.

b1-2

ZN45C12022

NUT

4шт.

b1-3

ZW26X12000

LOCK WASHER

4шт.
